External type material pump: the infinite speed regulation control
Packaging & Delivery
plywood and pallet
7 - 20 days according to order quantity

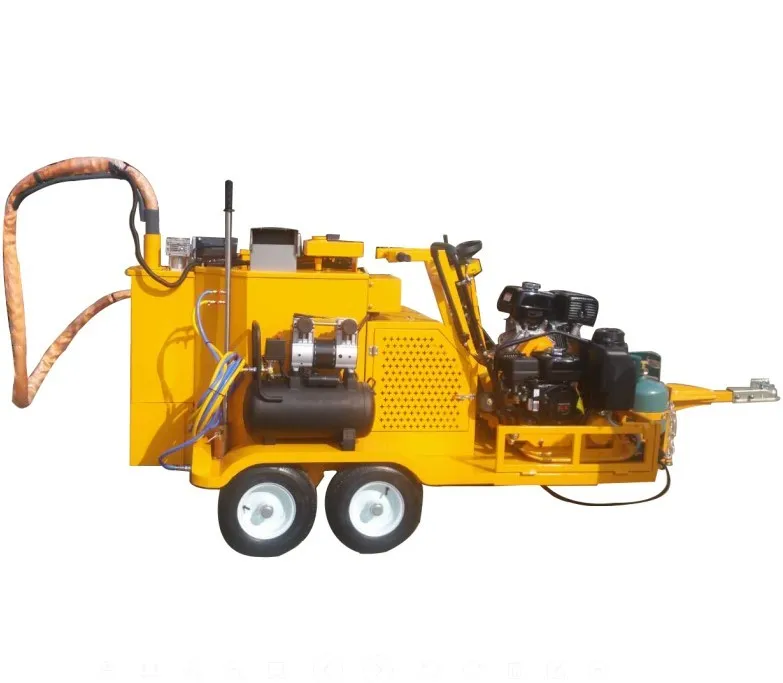

crack patching equipment self-propel
crack repair machines crack injection machine

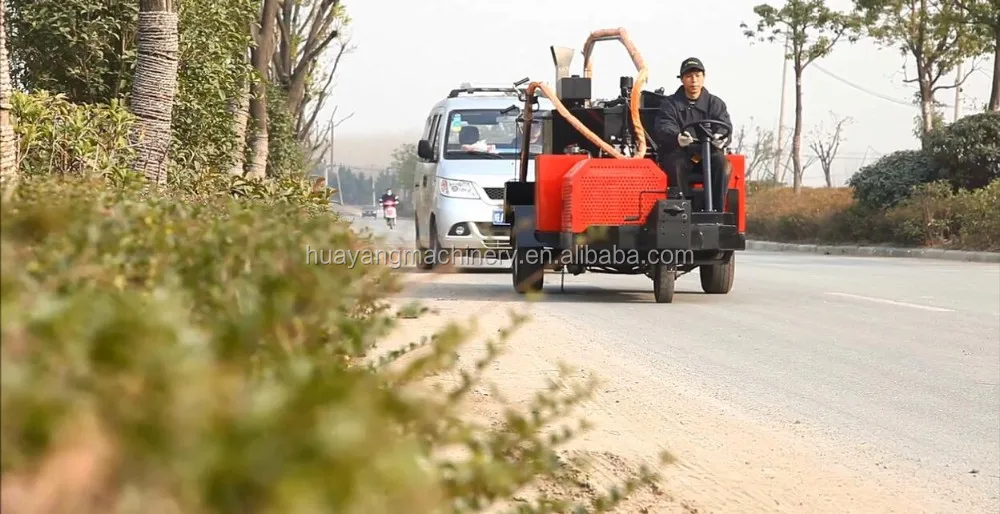

Applied to seal / repair the crack appeared on highway, city roads and airport pavements after initial traffic opening or after big/medium repairment. After slotting through grooving machine, we fill the crack with sealants, to ensure that the overall performance of the roads, therefore prolong the service life of highway.
1. Net Weight: 1300kg 2. Engine: 5.5kw Honda generator set 3. Hot melt kettle volume: 150L
4. Heat transfer oil / conduction oil: 50L 5. Fuel Tank Capability: 40L 6. Burner: Imported Italian diesel burner; Burning Power: 10000 kcal
7. Control of burning room: Computer automatically control 8. Temperature Control System: LED digital liquid crystal display mode
9. Material transmitting mechanism: External type material pump: the infinite speed regulation control 10. Sealing material heating time: About 40 mins
11. Output Hose: 6M electric heating hose, could rotate 360°, equipped with patented spout insulated chamber 12. Vehicle Damping: Lever compressional moded shock absorbers
13. Insulated gun spout: We are the first company who got patented heat preservation box design of the gun spout, solve the problems that there is no place to put the gun at temporary shutdown process
14. Accessories: Built-in tool box and on-vehicle tools

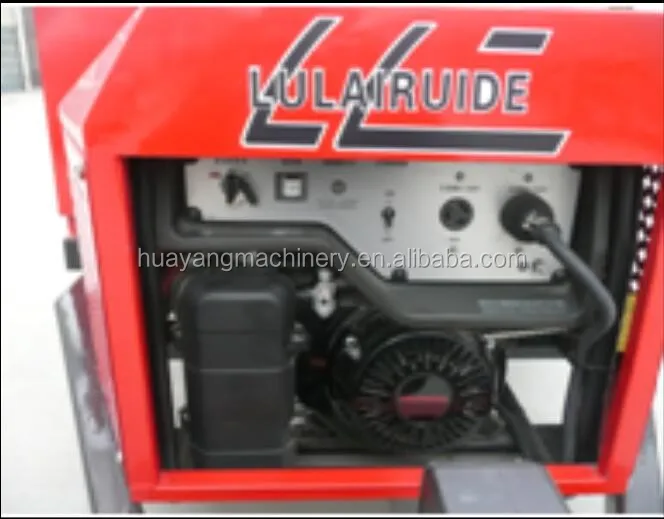

Name: Gasoline generator
Brand: Honda EG6500
The imported Honda EG6500 gasoline generators: provide sufficient power system to the equipment

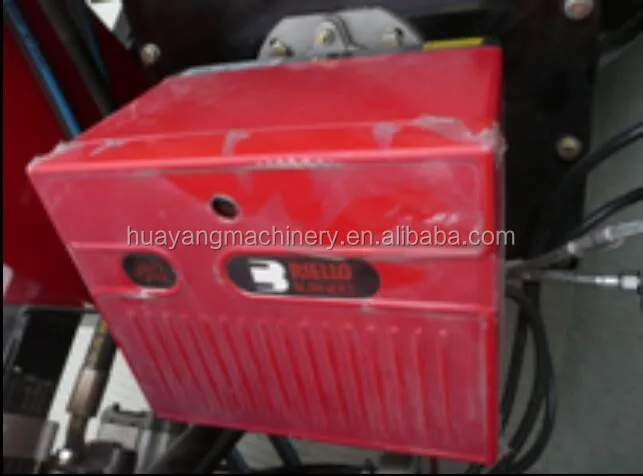

The heating system of imported Riello diesel burner can not only provide the ideal heating effect, it’s also stable and sustainable. through the use of advanced microcomputer control technology, the switch on and switch off function of the burner can be achieved automatically through setting heating temperature on the control panel. Through this, you could not only save energy consumption, but could also realize the real intelligence operations.
Hot melt pot adopts the design of inter-layered heat conduction oil. It can use special-purposed heating sealing glue, it can also use modified asphalt after heating.There are a number of adhesive absorbing openings at the bottom of the hot melt kettle, and the output pump could absorb the melting glue from any position of the hot melt kettle, thus greatly speeding up the melting and discharging of material.
The discharge hose adopts electric heating during the whole heating process, in addition to the automatic discharging switch, it’s specially equipped with a drip-proof valve, thus completely eradicating waste and pollution of road surface material caused by material drip
The bracket of spear parts of Crack sealing gun adopt patented design of heat insulation box, which are interlinked with hot melt kettle. Even when stopping work , you also need not worry that spear sealant would cause coagulation block. The crack sealing gun uses Teflon technology in the heating pipe, guaranteeing no bond in the barrel after use, therefore, there is no additional cleaning procedures of the pipeline

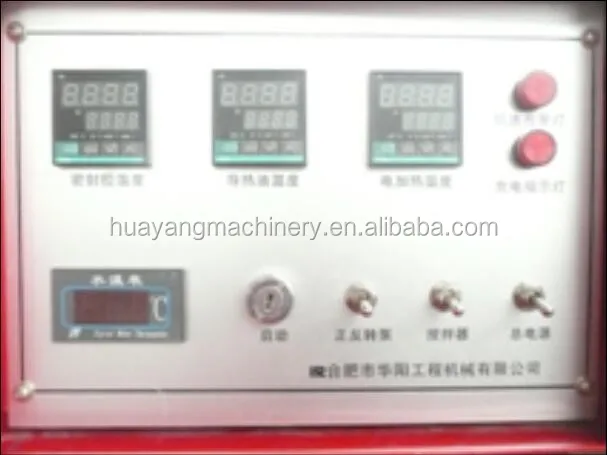

Digital display: Through microcomputer control, you can respectively control the temperature of hot melt kettle, conductive thermal oil and crack sealing gun, thus achieving accurate control of heating temperature for different seal material

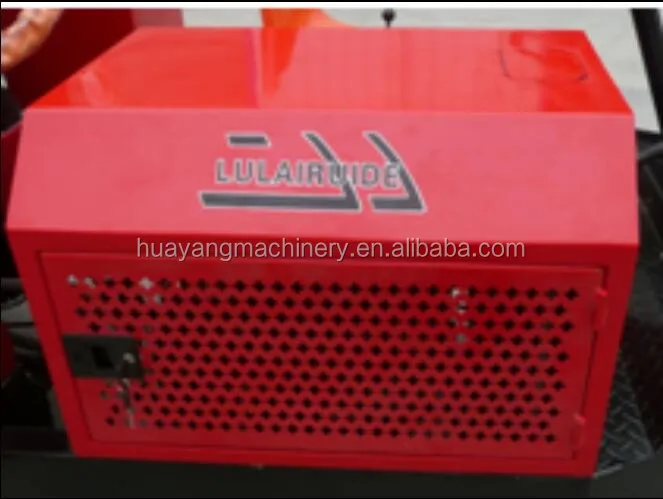

The whole machine adopts fully enclosed design, not only having beautiful shape, but also can better protect the engine and other key components
Advanced design concept, adding a carrying platform in the end of the filling and sewing machine, and also a traction device. Grooving machine, heat gun or other items can be easy to carry, greatly enhancing the maneuverability of the equipment
