plywood and pallet, to protect the machines from damaging and being affected with damp
7 - 20 days according to order quantity

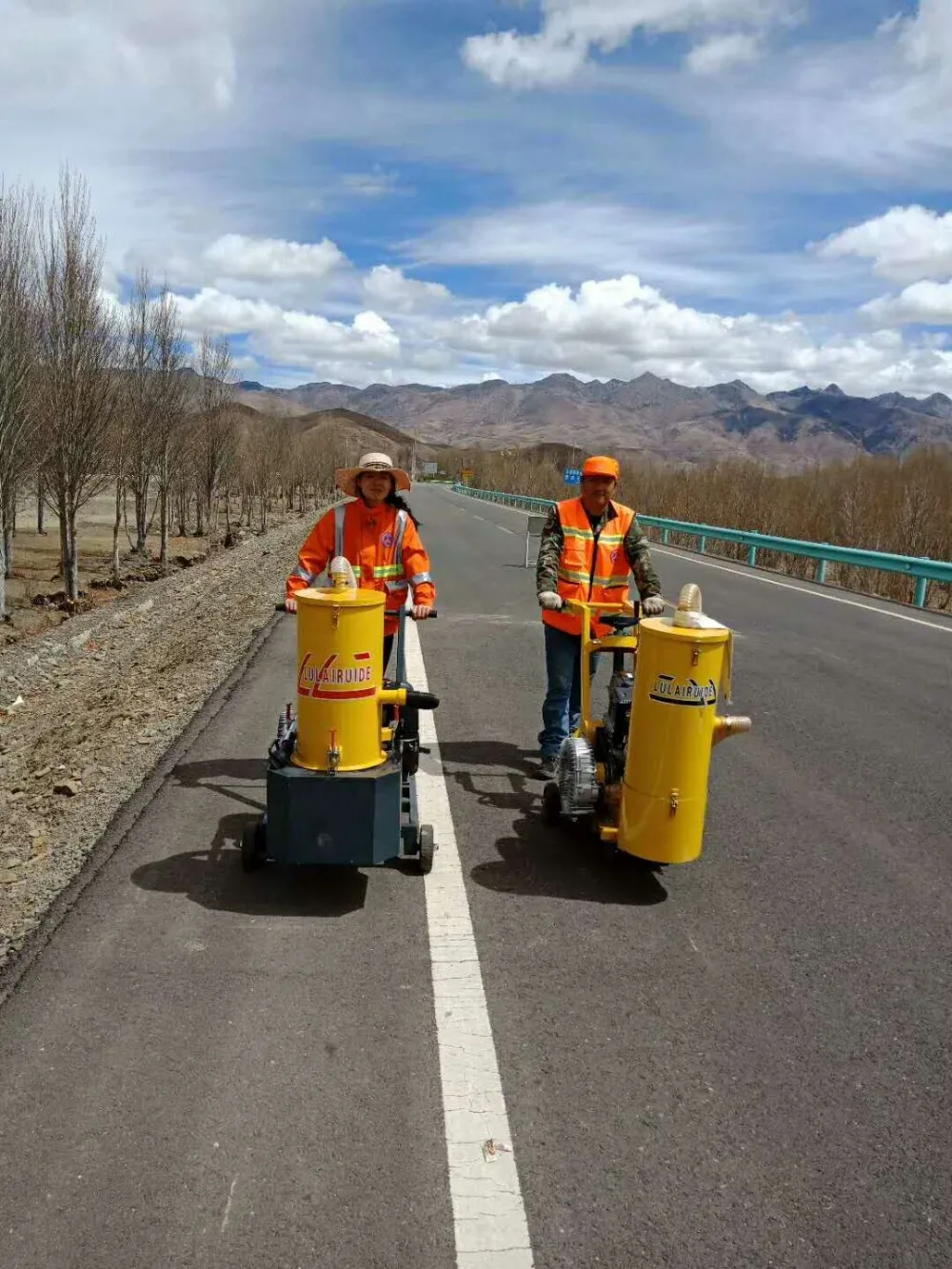

Applied to seal / repair the crack appeared on highway, city roads and airport pavements after initial traffic opening or after big/medium repairment. After slotting through grooving machine, we fill the crack with sealants, to ensure that the overall performance of the roads, therefore prolong the service life of highway.

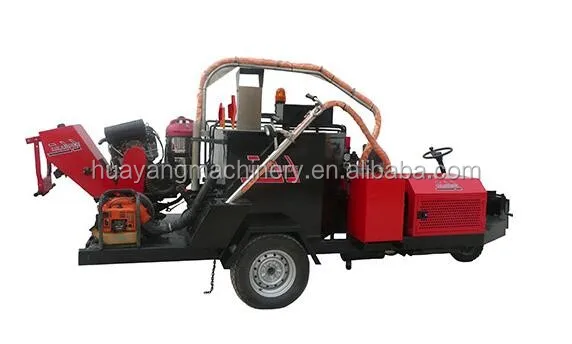

1.Net Weight: 2200kg 2.Material Melting Speed: About 40 mins 3.Hot melt kettle volume:300L
7. Fuel Tank: 80L 8.Hydraulic fuel tank capacity: 95L 9. Burner: Imported Italian Riello Diesel Burner
10.Burning Power: 100000 kcal 11. Heating Method: heat transfer oil indirect heating, to ensure that material will not be carbonized
12. Two stage melting: under the working status, we could use the cycling heating system to fill the material from upper material box and therefore form a cycle, heating sealant thoroughly; at the same time, it’s equipped with vertical mixer, hydraulic driving and reversing, to ensure the material temperature balance in the hot melt kettle
13. Temperature control: monitoring the temperature of thermal oil filling, sealing materials and electric heating tube, the computer automatic control (when reaching the construction temperature, it would automatically conduct heat preservation procedure)
14. Temperature control scope: 0～299℃ 15.Feeding mechanism: the integration of discharging control switch; Infinite speed control; Equipped with a leak-proof switch
16. Feeding hose: The electric heating tube is 6M in length, can rotate 360°, with patent technology in spout incubator, avoid blocking pipe problem caused by low temperature
17. Discharging control: the infinite speed regulation control
18. Plate and lifting device: grooving machine, dryer equipment can be integrated in the back of sealing machine (optional), not hanging, equipped with plate and electric hoist to assist lifting up and down
19. Moving Method: Dual-purpose: hand-push type or traction type as you like 20. Vehicle suspension: leverage spring compression type of shock absorber 21. Self-propelling Speed: 10km/h
Imported Yanmar 3TNV three cylinder diesel engine, providing plenty of power system to the equipment
The heating system of imported Riello diesel burner can not only provide the ideal heating effect, it’s also stable and sustainable. through the use of advanced microcomputer control technology, the switch on and switch off function of the burner can be achieved automatically through setting heating temperature on the control panel. Through this, you could not only save energy consumption, but could also realize the real intelligence operations
Hot melt pot adopts the design of inter-layered heat conduction oil. It can use special-purposed heating sealing glue, it can also use modified asphalt after heating.There are a number of adhesive absorbing openings at the bottom of the hot melt kettle, and the output pump could absorb the melting glue from any position of the hot melt kettle, thus greatly speeding up the melting and discharging of material.
The discharge hose adopts electric heating during the whole heating process, in addition to the automatic discharging switch, it’s specially equipped with a drip-proof valve, thus completely eradicating waste and pollution of road surface material caused by material drip
Emissions from combustion furnace uses spiral gas duct, reducing flue gas emissions. This is to avoid high-temperature flue gas from discharging into the air, to better control the heat loss rate and to increase the combustion value, thereby reducing work cycle time of the burner and prolong the thermal cycle

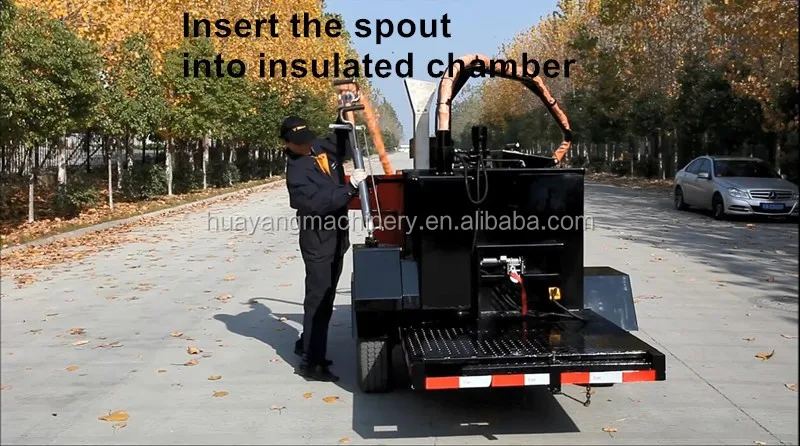

The bracket of spear parts of Crack sealing gun adopt patented design of heat insulation box, which are interlinked with hot melt kettle. Even when stopping work , you also need not worry that spear sealant would cause coagulation block. The crack sealing gun uses Teflon technology in the heating pipe, guaranteeing no bond in the barrel after use, therefore, there is no additional cleaning procedures of the pipeline
Digital display: Through microcomputer control, you can respectively control the temperature of hot melt kettle, conductive thermal oil and crack sealing gun, thus achieving accurate control of heating temperature for different seal material
The whole machine adopts fully enclosed design, not only having beautiful shape, but also can better protect the engine and other key components

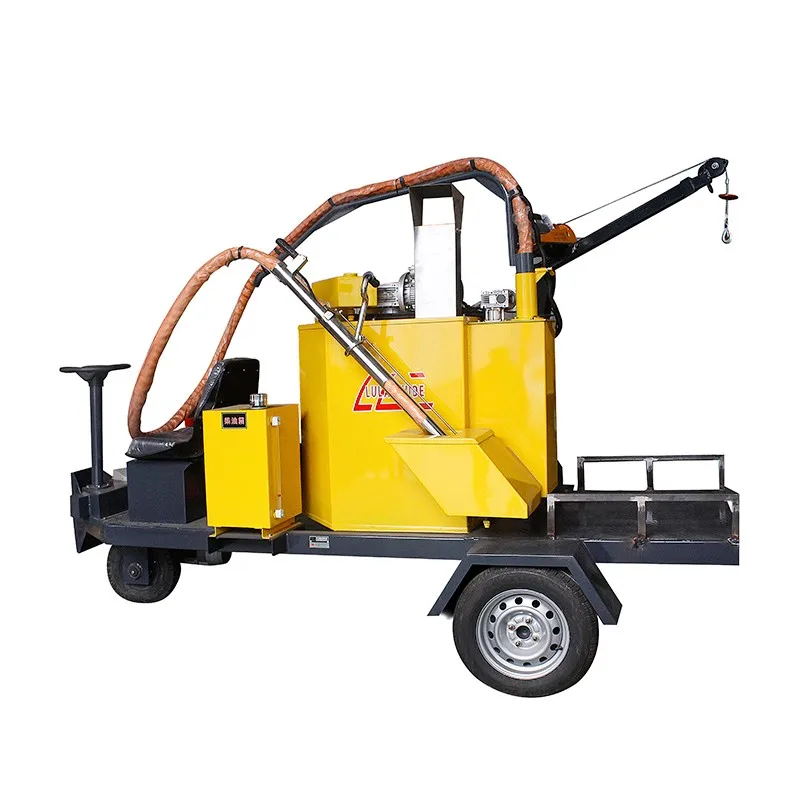

Advanced design concept, adding a carrying platform in the end of the filling and sewing machine, and also a traction device. Grooving machine, heat gun or other items can be easy to carry, greatly enhancing the maneuverability of the equipment
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
The normal package is carton and steel, to protect the machines from damaging and getting humidified during long-term shipment; Or we could also pack it according to customers special request.
