road crack asphalt sealing melting and filling machine driveway seam repairing sealant road crack repair joint sealing machine

FOB Reference Price:Get Latest Price
  • 1 - 2
    US $4118.00
  • >=3
    US $3518.00
Supply Ability:
300 Set/Sets per Month
Port:
Shanghai, Ningbo, or other ports required by customers
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Anhui, China (Mainland)
Brand Name:
LULAIRUIDE
Model Number:
LLRD-G80
Dimension(L*W*H):
1600*860*1200mm(L*W*H)
Weight:
220KG, 220KG
Power(W):
2.0 kw
Certification:
CE
Warranty:
1 Year
After-sales Service Provided:
Engineers available to service machinery overseas
Moving Method:
hand-push type
Size:
1600*860*1200mm(L*W*H)
Generator:
Yamaha Generator
Output Power:
50HZ
Rated Power:
2.0 KW
Voltage:
220V
Rotation speed and frequency:
4000rpm(50Hz)
Electric heating hose:
3M
Heat transfer oil:
15L
Packaging & Delivery
Packaging Details
plywood and pallet, to protect the machines from damaging and being affected with damp
Delivery Time
7 - 20 days according to order quantity
Product Description

road surface Durable crack repair products sealing machine, hard concrete Powerful road maintenance equipment,  highway crack hydraulic system road maintenance supplier

Product introduction

LLRD-G80 Crack Sealing Machine is used for sealing joints in the cement roads.

The equipment is composed of melting box, heating system, control system, transporting system, crack-oriented system, moving system, power system and so on.


It is used for sealing joints in the cement roads. Thermostat control system heats hot melt materials and can prevent aging materials effectively. Pressure injection sealing provides complete results by filling the gap from the bottom.



Parameter:


1.Moving Method: hand-push type
2.Weight: 220KG
3.Size: 1600*860*1200mm(L*W*H)

4.Generator: Yamaha Generator
5.Output Power: 50HZ
6.Rated Power: 2.0 KW

7.Voltage: 220V
8. Rotation speed and frequency: 4000rpm(50Hz)
9. Electric heating hose: 3M in length, electric heating during the whole procedure, more smoothly when sending out the glue

10.Heat transfer oil: 15L
11.Mixing Method: Manual operation

12.Hot melt kettle volume: 80L
13.Heating Method: heat transfer oil indirect heating

14.Asphalt pump: high pressure wear-resisting anti-clogging asphalt pump, pump adopts inorganic speed regulating motor, regulate the flow of sealant

15.Turning Method: universal rotating rear wheel, flexible steering, convenient in mobility; could seal irregular cracks
Certifications
Detailed Images

Machine Parts

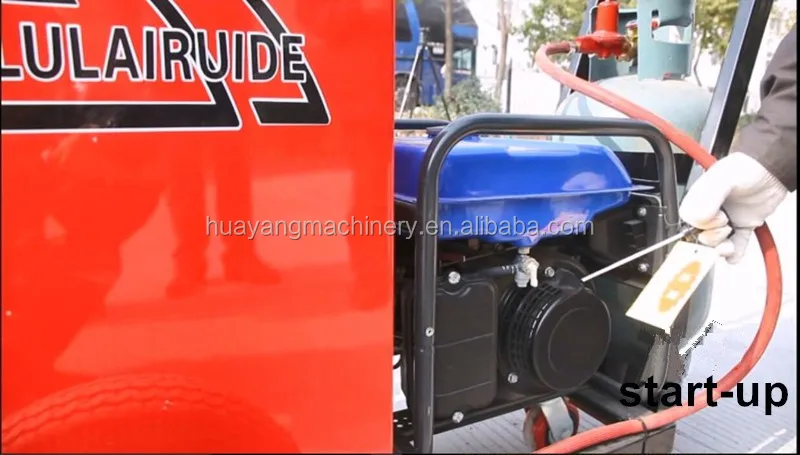

Name:  Generator

Brand: Yamaha

Original: Japan


The machine adopts imported Yamaha generator

Rated Power: 2.0 kw
Voltage: 220 v



Main Features

Hot melt kettle uses thermal oil heating which has uniform heating and sealant is not easy to carbide in the kettle








Temperature monitoring system

 LED digital display temperature control system, can monitor and adjust the temperature of the heat conduction oil and the temperature of the electric heating tube






External feeding pump:

greatly simplifies the equipment maintenance procedures and improves the service life of the machine


Electric heating tube:

3 m in length. Applying the electric heating tube could smooth the process of glue pushing. The electric heating tube uses plastic Teflon as inner core, the outside of inner core is winded by heating wire, to ensure the maximum stretch and the highest heat transfer. It has multi-layer insulation; Outer is asbestos and heat pipe is yellow





Electric Igniter







Machine Parts

Humanized sealing spout scraper, is more efficient in operation, reduce the labor intensity of workers, and is equipped with a drip discharge valve, completely eradicate the road pollution

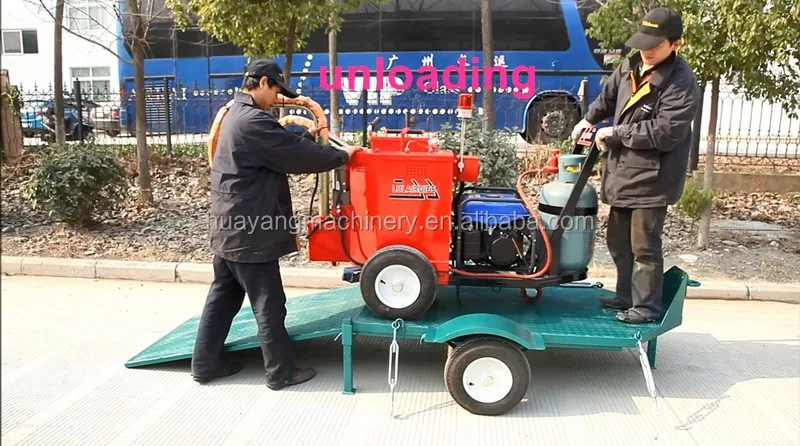

Special mobile trailer:


Optional choice, making movement more easy and convenient.




Construction Procedure:


1.Prep the Crack with either a router or random crack saw. This opens up the crack, creates a reservoir and preps the edge for better bonding. Rout or Saw? The most common approach is Saw Concrete, Rout Asphalt.

2.Clean the crack with dry, clean compressed air or for the best results, use a Heat lance. A heat lance removes not only dirt but moisture and vegetation. The heat lance also heats the old surface which helps in bonding with the new sealant. THE CLEANING PROCESS IS THE MOST IMPORTANT PART OF THE PROCESS.

3. Seal the crack with a quality Polymer modified brand name rubberized hot-pour sealant. Hot-pour sealant is proven to last up to 10 times longer the cold applied products in flexible pavements.


Product Features:

1. Thermostat control system can set up and control heating temperature automatically without easy aging, so that the material maintains a constant temperature.

2. Material pump and pipe are equipped with heating device, avoiding material condensation at low-temperature environment effectively.

3. Pressure injection sealing provides waterproof effect by filling the gap from bottom through material pump.

4. When seeling speed and walking speed are adjusted in line, the equipment will be able to move by itself with hand push and achieve the effect of intelligent construction.

Note: Equipment configuration can be adjusted according to customers construction needs.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
1800*1060*1400mm(L*W*H)
Weight
230KG



Packaging Details
The normal package is carton and steel, to protect the machines from damaging and getting humidified during long-term shipment; Or we could also pack it according to customers special request.
