Applied to seal / repair the crack appeared on highway, city roads and airport pavements after initial traffic opening or after big/medium repairment. After slotting through grooving machine, we fill the crack with sealants, to ensure that the overall performance of the roads, therefore prolong the service life of highway.

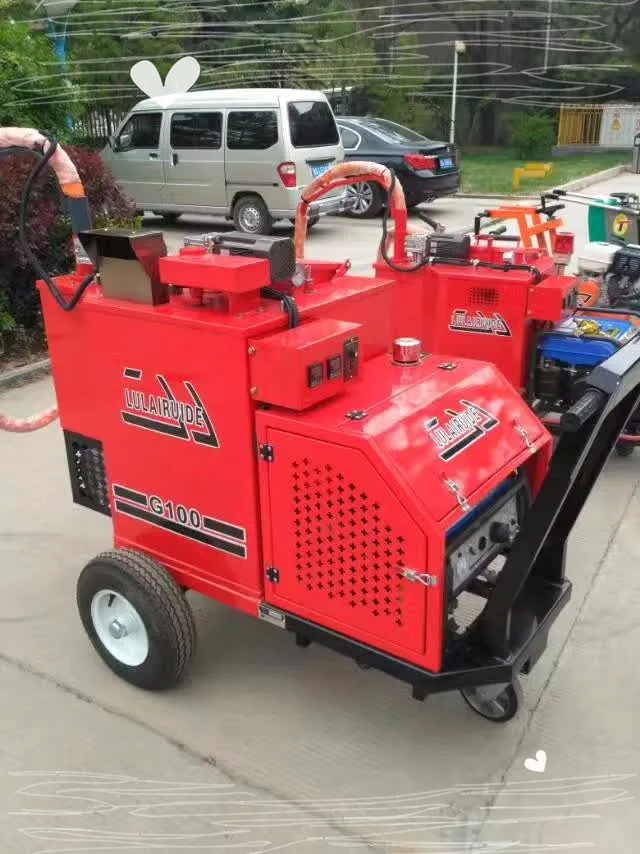

Specifications for LLRD-G100 road crack sealing machine
1.Moving Method: hand-push type
10.Material Melting Time: 30 Min
11.Electric heating hose: 4M in length, electric heating during the whole procedure, more smoothly when sending out the glue
12.Heat transfer oil: 40L
4.Generator: Yamaha Generator
13.Fuel Tank: 30L
5.Output Power: 50HZ
14.Mixing Method: Electric Mixing
6.Rated Power: 2.0 KW
15.Hot melt kettle volume: 100L
16.Heating Method: heat transfer oil indirect heating
8.Burner: Italian Diesel Burner
17.Asphalt pump: high pressure wear-resisting anti-clogging asphalt pump, pump adopts inorganic speed regulating motor, regulate the flow of sealant
9.Burning Power: 40000KCAL
18.Turning Method: turn the rear universal, flexible steering, convenient in mobility
1. Small volume and light weight makes it move easily. Configuration of the ramp stop device is easy to operate, therefore, irrigation of sealant is evenly and efficient
2.Heat conduction oil indirectly heats the joint sealant, effectively prevent high temperature carbonization of the crack seal material
3. Equipped with imported Italy EACOON diesel burner; heating is more efficient
4. The use of advanced control instrument, can clearly display and adjust the temperature of electric heating tube and heat conduction oil. The operator is clear about the operation of the machine at a glance
5. The electric heating hose can rotate 360 degrees, and in use process need no clean-up
6. Discharge pump is controlled through infinitely adjustable-speed motor, can regulate the flow of sealant according to need
Rated Power: 2.0 kw
Voltage: 220 v
Hot melt kettle uses thermal oil heating which has uniform heating and sealant is not easy to carbide in the kettle
Temperature monitoring system, LED digital display temperature control system, can monitor and adjust the temperature of the heat conduction oil and the temperature of the electric heating tube
The heating system of imported EACOON diesel burner, can not only provide the ideal heating effect, it’s also stable and sustainable. through the use of advanced microcomputer control technology, the switch on and switch off function of the burner can be achieved automatically through setting heating temperature on the control panel. Through this, you could not only save energy consumption, but could also realize the real intelligence operations
Electric mixing system: reduce labor intensity, make the heat more evenly
External type material pump: greatly simplifies the equipment maintenance procedures and improves the service life of the machine
Electric heating tube: 4 m in length, can rotate 360 degrees. Applying the electric heating tube could smooth the process of glue pushing. The electric heating tube uses plastic Teflon as inner core, the outside of inner core is winded by heating wire, to ensure the maximum stretch and the highest heat transfer. It has multi-layer insulation; Outer is asbestos and heat pipe is yellow

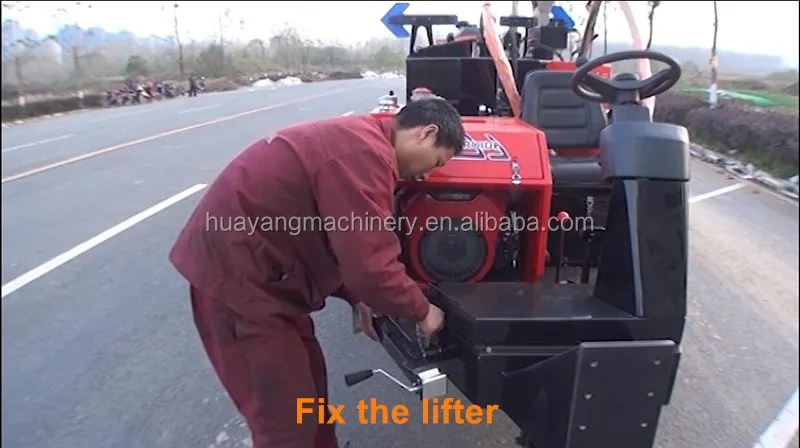

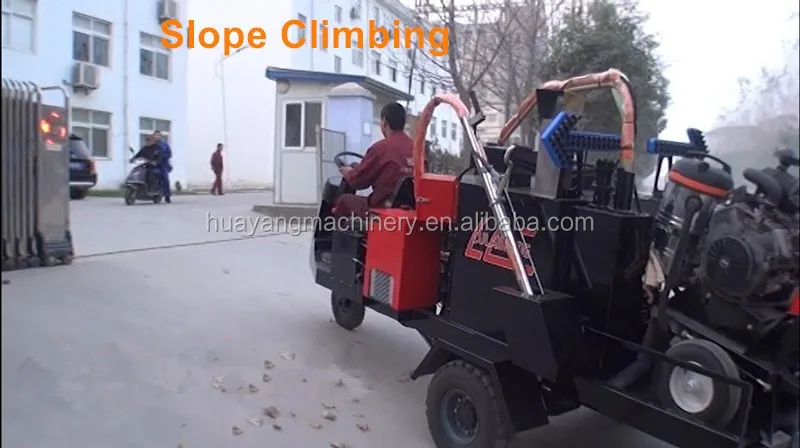

Safe and convenient slope locking devices: even if under slope construction, it can ensure safe and effective stop of the machine. It is especially suitable for mountain road usage
Humanized sealing spout scraper, is more efficient in operation, reduce the labor intensity of workers, and is equipped with a drip discharge valve, completely eradicate the road pollution
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
The normal package is carton and steel, to protect the machines from damaging and getting humidified during long-term shipment; Or we could also pack it according to customers special request.
