manual sealing machine road repair fitting machine roof sealing

FOB Reference Price:Get Latest Price
  • 1 - 2
    US $4500.00
  • >=3
    US $4000.00
Supply Ability:
300 Set/Sets per Month
Port:
Shanghai, Ningbo, or other ports designated by customers
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Anhui, China (Mainland)
Brand Name:
LULAIRUIDE
Model Number:
LLRD-G120
Dimension(L*W*H):
2000*1160*1530mm
Weight:
460KG, 460KG
Power(W):
2.0 kw
Certification:
CE ISO
Warranty:
1 Year
After-sales Service Provided:
Engineers available to service machinery overseas
Moving Method:
hand-push or self propelling
Size:
2000*1160*1530mm(L*W*H)
Generator:
Yamaha Generator
Output Power:
50HZ
Rated Power:
2.0 KW
Voltage:
220V
Burner:
Italian Diesel Burner
Burning Power:
40000KCAL
Material Melting Time:
30 Min
Packaging & Delivery
Packaging Details
plywood and pallet
Delivery Time
7 - 20 days according to order quantity
LLRD-G120

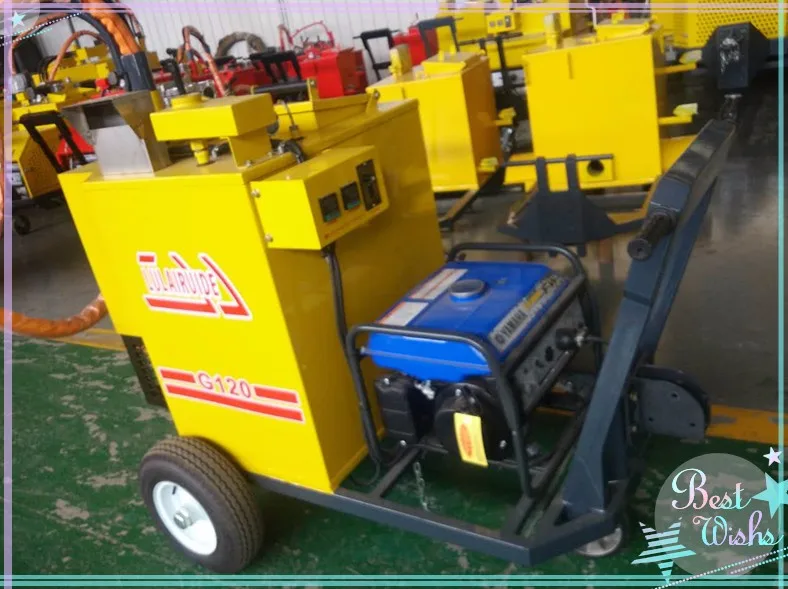

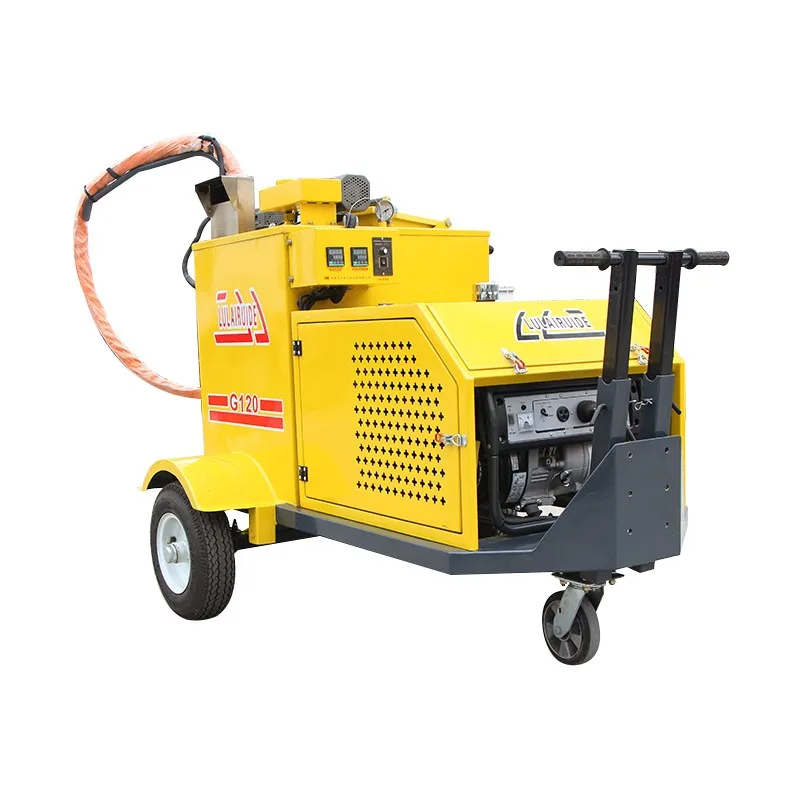

Manual sealing machine road repair fitting machine roof sealing


Product Application

Hand push or Traction type dual-purposed road crack sealing machine is a kind of small maintenance equipment used for repairing irregular cracks of asphalt pavement and road cement. It is simple and convenient in operation, and having convenient movement.


SPECIFICATIONS FOR LLRD-G120 CEMENT PAVEMENT
FACTORY PRICE CRACK REPAIR PRODUCTION
1.Moving Method: hand-push or self propelling
10.Material Melting Time: 30 Min
2.Weight: 460KG
11.Electric heating hose: 4M in length, electric heating during the whole procedure, more smoothly when sending out the glue
3.Size:2000*1160*1530mm(L*W*H)
12.Heat transfer oil: 40L
4.Generator: Yamaha Generator
13.Fuel Tank: 30L
5.Output Power: 50HZ
14.Mixing Method: Manual operated Mixing
6.Rated Power: 2.0 KW
15.Hot melt kettle volume: 120L
7.Voltage: 220V
16.Heating Method: heat transfer oil indirect heating
8.Burner: Italian Diesel Burner
17.Asphalt pump: high pressure wear-resisting anti-clogging asphalt pump, pump adopts inorganic speed regulating motor, regulate the flow of sealant
9.Burning Power: 40000KCAL
18.Turning Method: turn the rear universal, flexible steering, convenient in mobility. Could seal irregular cracks.


Main Features

1. Small volume and light weight makes it move easily. You could choose hand push or self-propelling during construction process as need, which brings great benefit to efficient construction. Irrigation of sealant is evenly and efficient

2. Heat conduction oil indirectly heats the joint sealant, effectively prevent high temperature carbonization of the crack seal material

3. Equipped with imported Italy Riello diesel burner; heating is more efficient

4. The use of advanced control instrument, can clearly display and adjust the temperature of electric heating tube and heat conduction oil. The operator is clear about the operation of the machine at a glance

5. The electric heating hose can rotate 360 degrees, and in use process need no clean-up

6. Discharge pump is controlled through infinitely adjustable-speed motor, can regulate the flow of sealant according to need

Certifications
Detailed Images

Machine Parts

Name: Generator

Brand: Yamaha

Original: Japan


Rated Power: 2.0 kw
Voltage: 220 v


Main Features

Hot melt kettle uses thermal oil heating which has uniform heating and sealant is not easy to carbide in the kettle


Machine Parts

Temperature monitoring system, LED digital display temperature control system, can monitor and adjust the temperature of the heat conduction oil and the temperature of the electric heating tube


Main Features

The heating system of Italian imported Riello diesel burner can not only provide the ideal heating effect, it’s also stable and sustainable. through the use of advanced microcomputer control technology, the switch on and switch off function of the burner can be achieved automatically through setting heating temperature on the control panel. Through this, you could not only save energy consumption, but could also realize the real intelligence operations


Machine Parts

External type material pump: greatly simplifies the equipment maintenance procedures and improves the service life of the machine







Main Features

Electric heating tube: 4 m in length, can rotate 360 degrees. Applying the electric heating tube could smooth the process of glue pushing. The electric heating tube uses plastic Teflon as inner core, the outside of inner core is winded by heating wire, to ensure the maximum stretch and the highest heat transfer. It has multi-layer insulation; Outer is asbestos and heat pipe is yellow



Machine Parts

Humanized sealing spout scraper, is more efficient in operation, reduce the labor intensity of workers, and is equipped with a drip discharge valve, completely eradicate the road pollution

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
2200*1360*1730mm(L*W*H)
Weight
470kg



Packaging Details
The normal package is carton and steel to protect the machines from damaging and getting humidified during long-term shipment, or we could pack it according to customers special requests.
Related Products

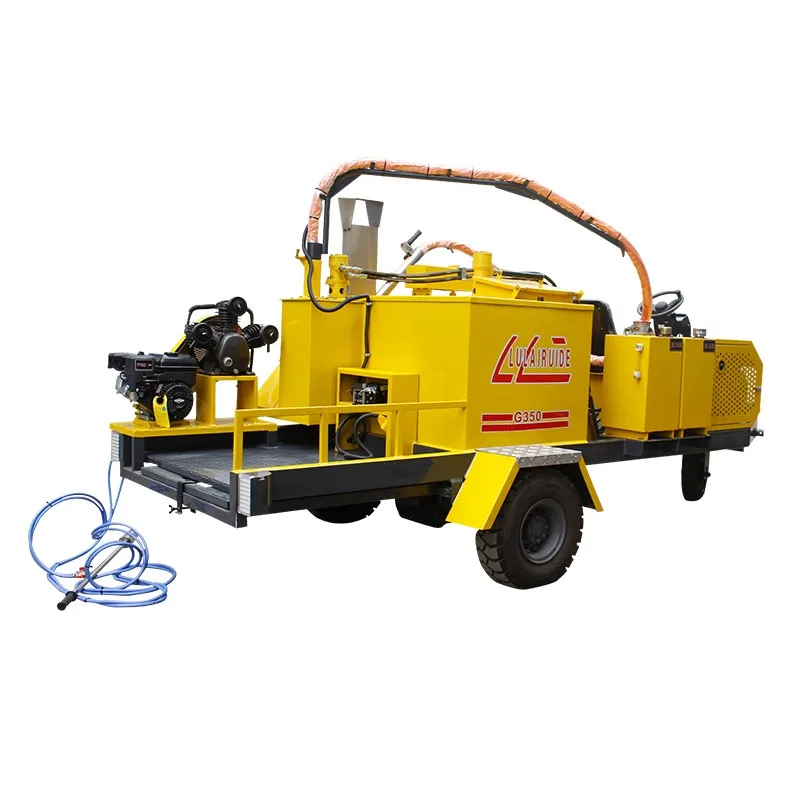

LLRD-G350 concrete expansion with honda engine crack injection machine
