seam sealing machine waterproof sealing concrete joint sealing machine

FOB Reference Price:Get Latest Price
  • 1 - 2 Sets
    US $21325.00
  • 3 - 4 Sets
    US $20325.00
  • >=5 Sets
    US $19000.00
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Anhui, China (Mainland)
Brand Name:
LULAIRUIDE
Model Number:
LLRD-G500
Dimension(L*W*H):
3980mm*1980mm*1830mm
Weight:
2400kg, 2400KG
Power(W):
25HP
Certification:
CE
Warranty:
1 Year
After-sales Service Provided:
Engineers available to service machinery overseas
Melting Speed:
About 40 mins
Engine:
Imported Honda GX690 gasoline engine / Yanmar 3TNV diesel engine
Hot melt kettle volume:
500L
Heat transfer oil / conduction oil:
120L
Engine Power:
25HP
Fuel Tank Capability:
90L
Hydraulic fuel tank capacity:
90L
Burner:
Imported diesel burner
Burning Power:
100000 KCAL
Supply Ability
Supply Ability:
300 Set/Sets per Month
Packaging & Delivery
Packaging Details
Plywood and pallet, to protect the products from from damaging and being affected with damp
Port
Shanghai, Ningbo, or other ports required by customers
Lead Time :
7 - 20 days according to order quantity
Product Description

seam sealing machine waterproof sealing concrete joint sealing machine

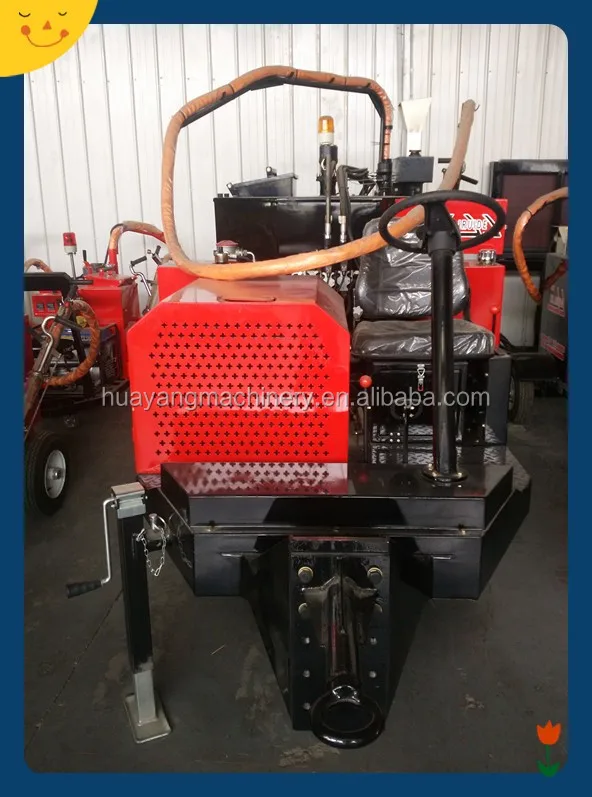

LLRD-G500 crack sealing machine, illuminating facilities and caution light which are all mounted on the same self-propelled chassis, can make forward and backward moving; the equipment has stable and strong power; Through computer program control material melting, indirect heating the material through diesel burner, the unique stirring system design, well mixed and fast the heating speed;

6 meters material conveying hose can expand the construction area and improve the working efficiency. LLRD-G500 are economical and practical road maintenance equipment with stable and reliable performance.


Certifications
Detailed Images

Machine Parts


The imported Yanmar 3TNV 3 cylinder diesel generators: provide sufficient power system to the equipment







Main Features

The heating system of imported Riello diesel burner can not only provide the ideal heating effect, it’s also stable and sustainable. through the use of advanced microcomputer control technology, the switch on and switch off function of the burner can be achieved automatically through setting heating temperature on the control panel. Through this, you could not only save energy consumption, but could also realize the real intelligence operations


Machine Parts

Hot melt pot adopts the design of inter-layered heat conduction oil. It can use special-purposed heating sealing glue, it can also use modified asphalt after heating.There are a number of adhesive absorbing openings at the bottom of the hot melt kettle, and the output pump could absorb the melting glue from any position of the hot melt kettle, thus greatly speeding up the melting and discharging of material.


Main Features

The discharge hose adopts electric heating during the whole heating process, in addition to the automatic discharging switch, it’s specially equipped with a drip-proof valve, thus completely eradicating waste and pollution of road surface material caused by material drip




Machine Parts

Emissions from combustion furnace uses spiral gas duct, reducing flue gas emissions. This is to avoid high-temperature flue gas from discharging into the air, to better control the heat loss rate and to increase the combustion value, thereby reducing work cycle time of the burner and prolong the thermal cycle



Main Features

The bracket of spear parts of Crack sealing gun adopt patented design of heat insulation box, which are interlinked with hot melt kettle. Even when stopping work , you also need not worry that spear sealant would cause coagulation block. The crack sealing gun uses Teflon technology in the heating pipe, guaranteeing no bond in the barrel after use, therefore, there is no additional cleaning procedures of the pipeline


Machine Parts

Digital display: Through microcomputer control, you can respectively control the temperature of hot melt kettle, conductive thermal oil and crack sealing gun, thus achieving accurate control of heating temperature for different seal material





Main Features

The whole machine adopts fully enclosed design, not only having beautiful shape, but also can better protect the engine and other key components






Machine Parts

The most advanced “instant pumping” function for optional choice








Main Features

Night lighting and warning lights for optional choice


Sealing Procedure:

1.Prep the Crack with either a router or random crack saw. This opens up the crack, creates a reservoir and preps the edge for better bonding. Rout or Saw? The most common approach is Saw Concrete, Rout Asphalt.

2.Clean the crack with dry, clean compressed air or for the best results, use a Heat lance. A heat lance removes not only dirt but moisture and vegetation. The heat lance also heats the old surface which helps in bonding with the new sealant. THE CLEANING PROCESS IS THE MOST IMPORTANT PART OF THE PROCESS.

3.Seal the crack with a quality Polymer modified brand name rubberized hot-pour sealant. Hot-pour sealant is proven to last up to 10 times longer the cold applied products in flexible pavements.

Advantages:


1. Digital Flow Control- Provides smooth and even material flow, no matter what volume or sealing tip is required. With pump speeds less than 25RPM’s and virtually no back pressure, packing leakage is minimized and pump life is prolonged.

2. Agitator - Ensures even mixing and eliminates temperature stratification in the tank. Unobstructed Internal Machine Recirculation ensures superfast heat up and recovery times.

3. Auto/Manual Operation- Customers could choose the operation that works best for your application; manual operation allows the user to operate the pump and agitator. When in “Auto” mode, the digital control system takes over. When the three green lights are on, the machine is ready to work.

4. The equipment is equipped with the new “No-Drip” ergonomic wand. The robust aluminium design makes crack sealing an easier process. A special ball valve is located at the tip to virtually eliminate dripping between cracks.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
4180mm*2180mm*2030mm
Weight
2020KG



Packaging Details
The normal package is wood and pallet, to protect the machines from damaging and getting humidified during long-term shipment; Or we could also pack it according to customers special request.
