Asphalt mixer for pothole repairing hot asphalt mixing machine bitumen mixing plant

  • 1 - 2 Sets
    $32,835.00
  • 3 - 4 Sets
    $30,000.00
  • >=5 Sets
    $28,000.00
Model Number:
LLRD-HR800
Lead Time:
Quantity(Sets) 1 - 1 2 - 3 4 - 5 >5
Est. Time(days) 7 40 15 Negotiable
Report Suspicious Activity
Overview
Quick Details
Power(W):
8.0
Weight:
2200KG, 2200KG
Warranty:
1 YEAR
Condition:
New
Place of Origin:
China
Brand Name:
LULAIRUIDE
Voltage:
220V
Dimension(L*W*H):
3350*1700*1900mm(L*W*H)
Certification:
CE
Size:
3350*1700*1900mm(L*W*H)
Usage:
Heating of new asphalt mixture & recycling of old pavement materials
Engine:
Domestic gasoline generator, power: 8.0kw, Rated voltage: 380V
Material box volume:
800L
Heating method:
Imported diesel burner, AC220V; Power: 100kw
Heating time:
15min
Transfer Method:
Cycloid reducer /17rmp/min
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
1000 Set/Sets per Month
Packaging & Delivery
Packaging Details
plywood and pallet, to protect the machines from damaging and being affected with damp
Port
Shanghai, Ningbo, or other ports required by customers
Lead Time :
Quantity(Sets) 1 - 1 2 - 3 4 - 5 >5
Est. Time(days) 7 40 15 To be negotiated
Product Description

Asphalt mixer for pothole repairing hot

asphalt mixing machine bitumen mixing plant


Asphalt mixing machine:

1) Design concept: mixing the hot asphalt with the old materials from pothole repairing, to form a new pothole repairing material that can replace the asphalt from asphalt mixing station;

2) The voltage is 220V. You could connect the equipment to your household power supply;

3) Hydraulic power sources (220V) could be connected to this equipment (such as breaking hammers, hydraulic power stations, plate compactors, etc);

4) On construction site, the engine (220V) provides power sources to the equipment

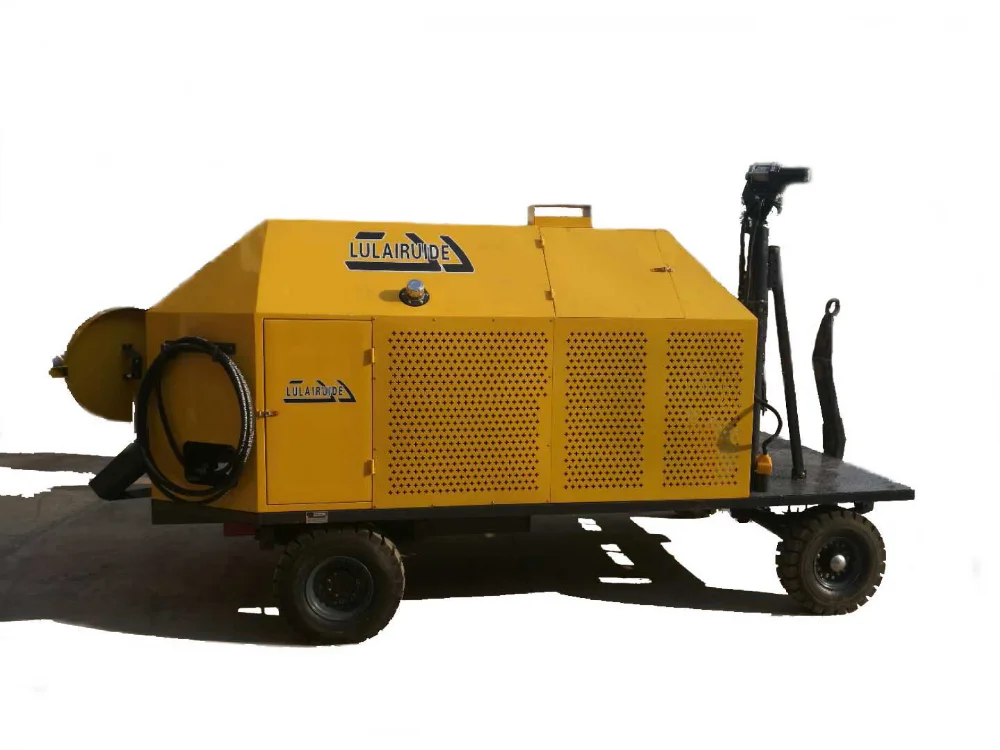

Product Picture

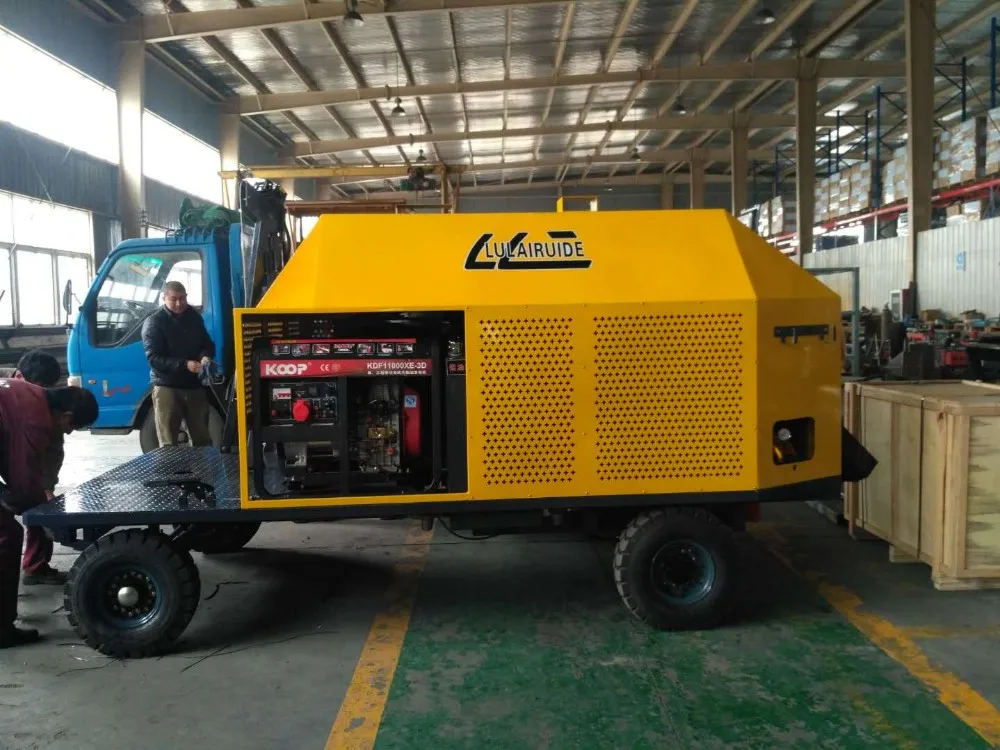

Detailed Images



Detailed Parameters:

1.Model and usage:

1)Model: LLRD-HR800

2)Usage: Heating of new asphalt mixture & heating and recycling of old pavement materials

2. Feed Cylinder Section:

1) Engine: Domestic gasoline generator, power: 8.0kw, Rated voltage: 380V

2) Material box volume: 800L

3)Heating method: Imported diesel burner, AC220V; Power: 100kw, three-piece cross spiral blade, 360 degree rotation, having uniform heating

4)Heating time: 15min

5)Transfer Method: Cycloid reducer 17rmp/min

6)Discharging method: Reverse spiral discharge, discharging speed:200kg/min

7)Temperature control: Automatic control, LCD temperature controller, temperature range: 60 °C -300 °C (adjustable and controllable)

3.Hot asphalt system

1)Hot asphalt tank volume: 100L

2)Heating method: Burner heating

3)Conveying line: Full electric heating tube

4.Propelling part

1)Propelling method: Trailer type (towing hook's height is adjustable )

2)Trailing chassis: Shock-absorbing chassis, heavy-duty specialized vehicle tires

3)Suspension arm: The chassis is equipped with a suspension arm, and the loading weight of the suspension arm is 400kg.


Certificates

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Weight
2200KG



Packaging Details
The normal package is carton and steel, to protect the machines from damaging and getting humidified during long-term shipment; Or we could also pack it according to customers special request.
Related Products

LLRD-G120 road crack repairing sealing machine

90% Response Rate

hydraulic power station hydraulic station to drive hydraulic breaking picks hydraulic power station for construction

82% Response Rate

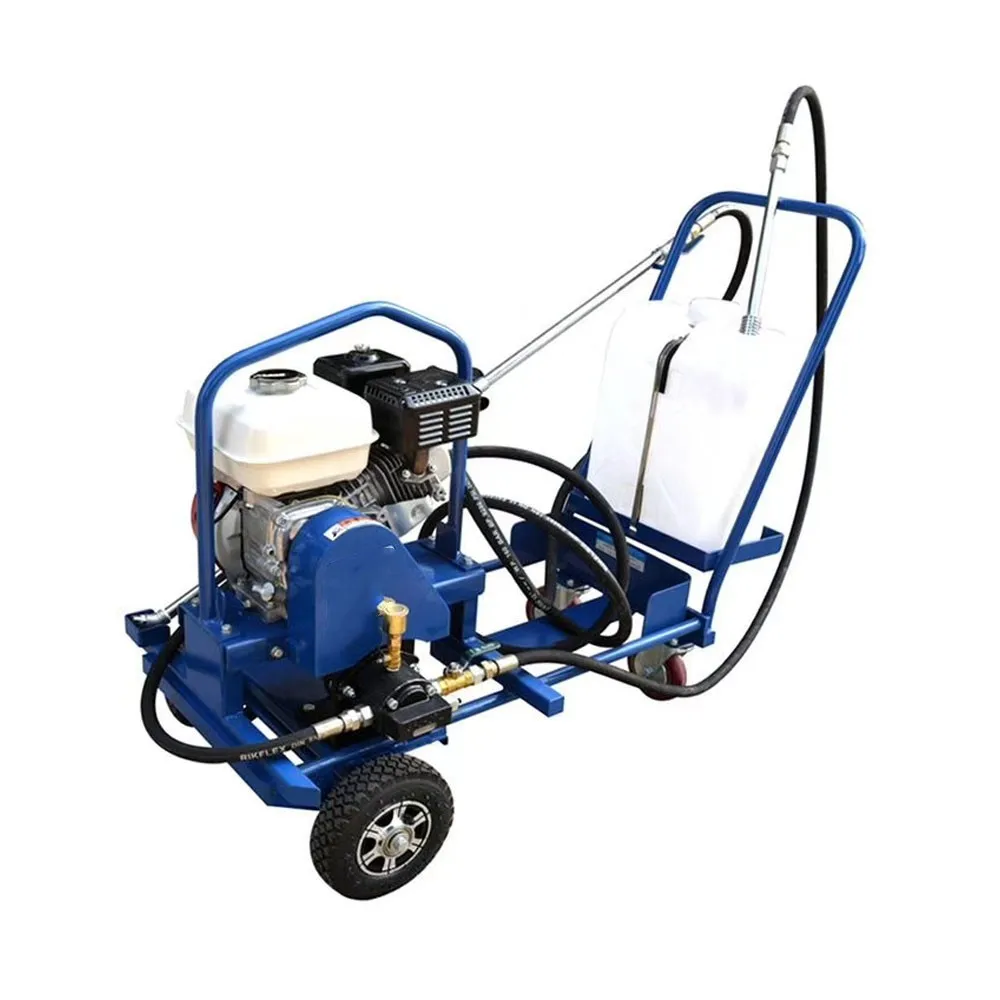

Small Gasoline Emulsified Asphalt Spreader Bituminous pavement maintenance machine Mini Emulsification Asphalt Spreader
