pavement road hand push manhole repairing cutter supplier circular round manhole cover repair cutting machine

  • 1 - 2 Sets
    $16,000.00
  • >=3 Sets
    $15,000.00
Model Number:
R25
Diameter of Blade:
450mm
Lead Time:
Quantity(Sets) 1 - 1 2 - 3 4 - 5 >5
Est. Time(days) 7 12 20 Negotiable
Customization:
size, color, weight, shape, components, etc. (Min. Order: 1 Sets)
Customized logo (Min. Order: 1 Sets)

More

Customized packaging (Min. Order: 1 Sets)
Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Cutting Depth:
125-150mm
Power(W):
25hp
Rotary Speed:
2000
Power Source:
Honda GX690
After-sales Service Provided:
Overseas service center available, Engineers available to service machinery overseas, Overseas third-party support available
Warranty:
1 Year
Applicable Industries:
Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Retail, Construction works
Condition:
New
Place of Origin:
Anhui, China
Brand Name:
LULAIRUIDE
Voltage:
Customized
Weight:
380kg, 380KG
Dimension(L*W*H):
1400*1200*1800mm (L*W*H)
Certification:
CE
Running Speed:
10m/min
Size:
1400*1200*1800mm(L*W*H)
Engine:
GX690; 2 cylinder gasoline engine
Hydraulic System:
Output flow 20~30L/min
Engine Power:
25hp
Applicable Field:
Applicable for all kinds of manhole
Diameter of the curved blade:
450mm
Max Cutting Depth:
150mm
Max Cutting Diameter:
160mm
Starting Method:
Remote Electric Starting
Supply Ability
Supply Ability:
600 Set/Sets per Month
Packaging & Delivery
Packaging Details
plywood and pallet, to protect the machines from damaging and being affected with damp
Port
Shanghai, Ningbo, or other ports required by customers
Lead Time :
Quantity(Sets) 1 - 1 2 - 3 4 - 5 >5
Est. Time(days) 7 12 20 To be negotiated
Product Description

LLRD-R25 airport road customizable driveway repairing construction, road breakdown road safety

highway construction maintenance, road failure iron cast airport construction equipment

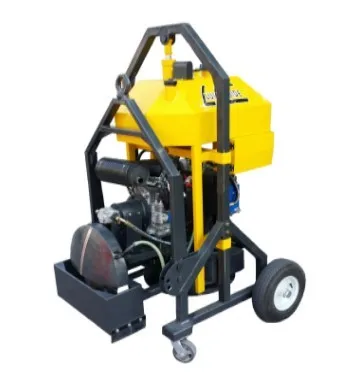

Features of LLRD-R25 Manhole cutter
1. Could conduct circular cutting around the manhole;
4.Advanced cutting blade: speed could be set at what level you need;
2.Center location to ensure beautiful appearance of the shape;
5.Wide range of cutting width;
3.Remote operation: safe and efficient;
6.Could use ordinary cutting saw: cost-effective
Certifications
Detailed Images

Product Features:

1. Model: LLRD-R25
2. Weight: 390kg
3. Hydraulic System: Output flow 20~30L/min
4. Engine: Honda GX690; 2 cylinder gasoline engine
5. Engine Power: 25hp
6. Cutting Range: Applicable for all kinds of manhole


7. Curved blade diameter: 450mm
8. Max cutting depth: 150mm
9. Max Cutting Depth: 160mm
10. Starting Mode: Remote Electric Starting
11. Operation Method: Remote Operation

12. Rotation: dual-direction; double speed


13. Optional accessories of hydraulic tools(for LLRD - R25H) : hydraulic crushing picks, hydraulic cutting saw, hydraulic pumps, hydraulic plate compactor, hydraulic electric welding machine, hydraulic cleaning machines, hydraulic pile drawing machine, hydraulic compactor rod, etc
14. Water Tank Volume: 60L
15. Moving Method: Traction

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Weight
390 KG



Packaging Details
The normal package is carton and steel, to protect the machines from damaging and getting humidified during long-term shipment; Or we could also pack it according to customers special request.
