crack joint filling machine repairing sealant crack injection machine crack injection machine road surfacing patching kettle

FOB Reference Price:Get Latest Price
  • 1 - 2 Sets
  • >=3 Sets
Report Suspicious Activity
Quick Details
2.0 kw
220KG, 220KG
Place of Origin:
Anhui, China
Brand Name:
Model Number:
Moving Method:
hand-push type
Yamaha Generator
Output Power:
Rated Power:
2.0 KW
Rotation speed and frequency:
Electric heating hose:
Heat transfer oil:
After-sales Service Provided:
Engineers available to service machinery overseas
1 Year
Supply Ability
Supply Ability:
300 Set/Sets per Month
Packaging & Delivery
Packaging Details
Carton and steel, to protect the machines from damaging and being affected with damp
Shanghai, Ningbo, or other ports required by customers
Lead Time :
7 - 20 days according to order quantity
Product Description

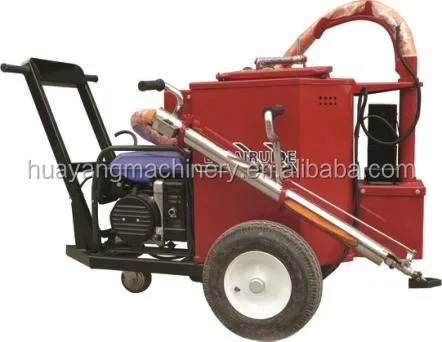

road construction crack repair joint filling machine
mobile high performance crack patching equipment


At capillary cracks occurring on asphalt surface after a certain time or at gaps occurring between side walk borders and road material on new roads, penetration of rain/snow water underneath the road material freezes and causes deformation at cold weathers.


1.Moving Method: hand-push type
2.Weight: 220KG
3.Size: 1600*860*1200mm(L*W*H)

4.Generator: Yamaha Generator
5.Output Power: 50HZ
6.Rated Power: 2.0 KW

7.Voltage: 220V
8. Rotation speed and frequency: 4000rpm(50Hz)
9. Electric heating hose: 3M in length, electric heating during the whole procedure, more smoothly when sending out the glue

10.Heat transfer oil: 15L
11.Mixing Method: Manual operation

12.Hot melt kettle volume: 80L
13.Heating Method: heat transfer oil indirect heating

14.Asphalt pump: high pressure wear-resisting anti-clogging asphalt pump, pump adopts inorganic speed regulating motor, regulate the flow of sealant

15.Turning Method: universal rotating rear wheel, flexible steering, convenient in mobility; could seal irregular cracks
Detailed Images

Machine Parts

Name:  Generator

Brand: Yamaha

Original: Japan

The machine adopts imported Yamaha generator

Rated Power: 2.0 kw
Voltage: 220 v

Main Features

Hot melt kettle uses thermal oil heating which has uniform heating and sealant is not easy to carbide in the kettle

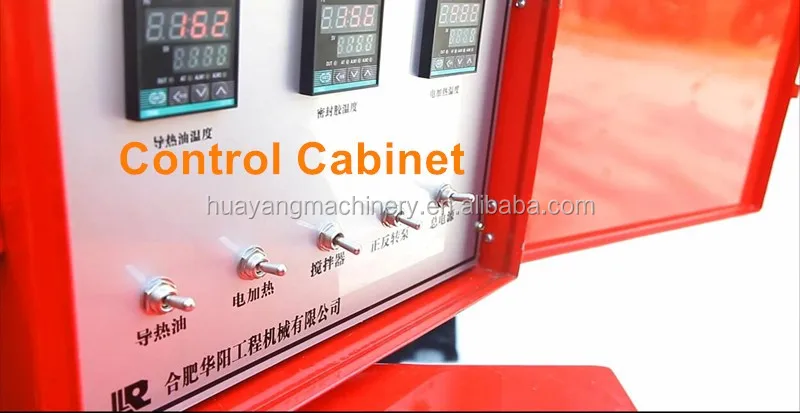

Temperature monitoring system

 LED digital display temperature control system, can monitor and adjust the temperature of the heat conduction oil and the temperature of the electric heating tube

External feeding pump:

greatly simplifies the equipment maintenance procedures and improves the service life of the machine

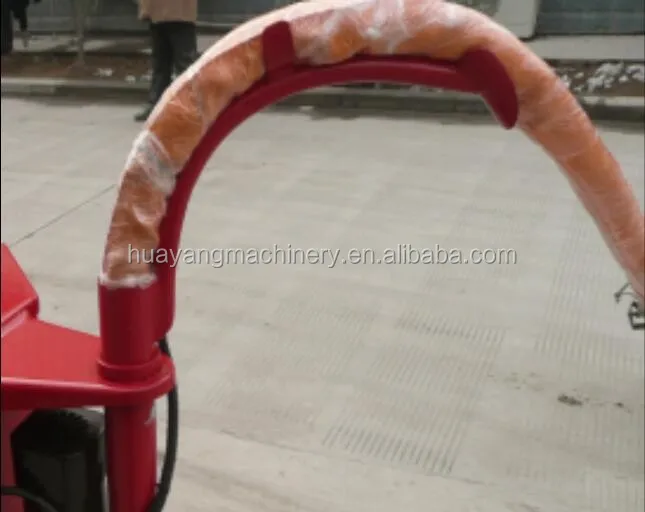

Electric heating tube:

3 m in length. Applying the electric heating tube could smooth the process of glue pushing. The electric heating tube uses plastic Teflon as inner core, the outside of inner core is winded by heating wire, to ensure the maximum stretch and the highest heat transfer. It has multi-layer insulation; Outer is asbestos and heat pipe is yellow

Electric Igniter

Machine Parts

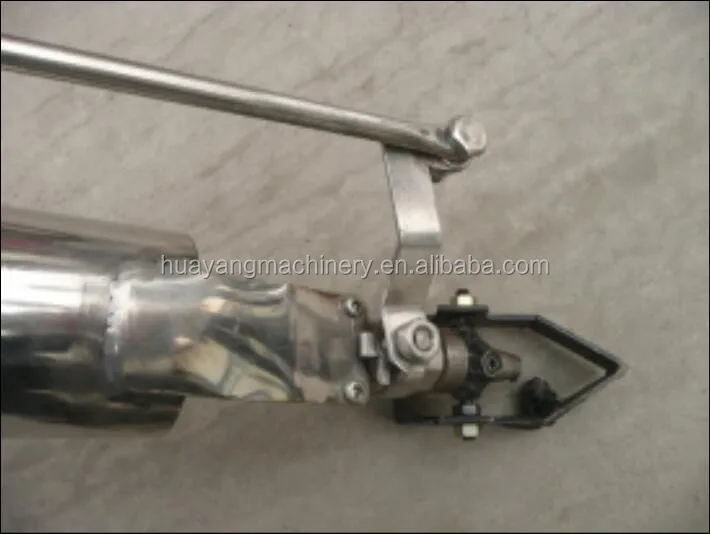

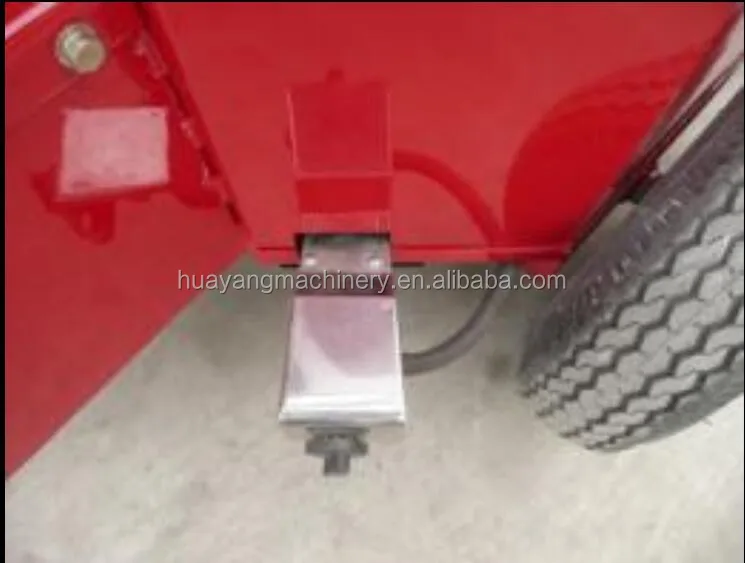

Humanized sealing spout scraper, is more efficient in operation, reduce the labor intensity of workers, and is equipped with a drip discharge valve, completely eradicate the road pollution

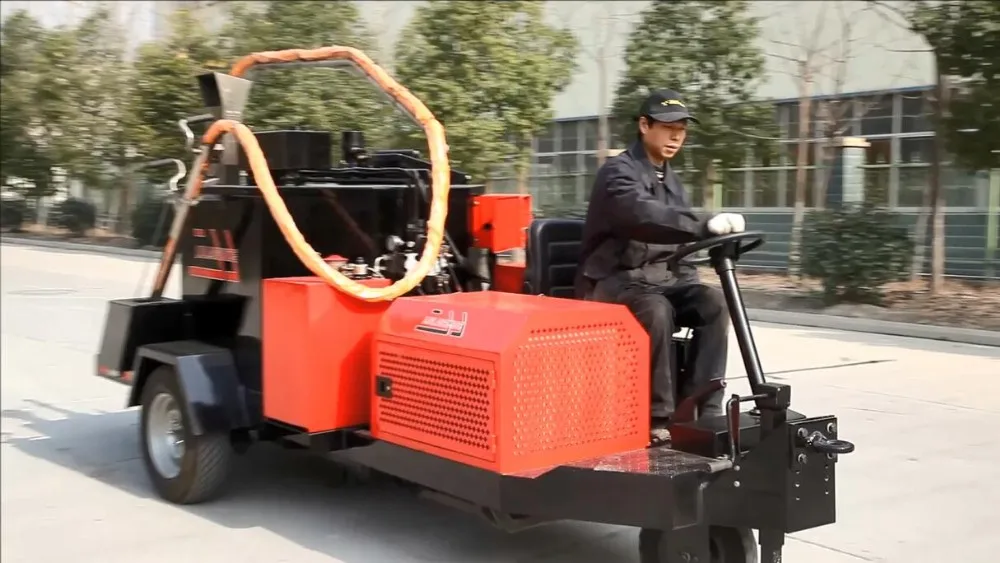

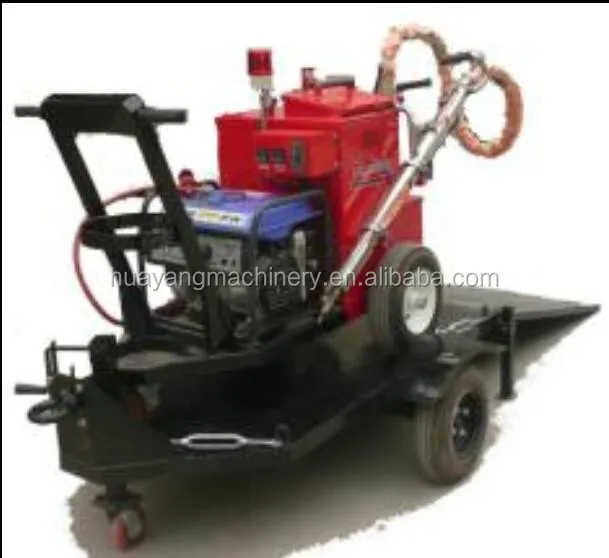

Special mobile trailer:

Optional choice, making movement more easy and convenient.

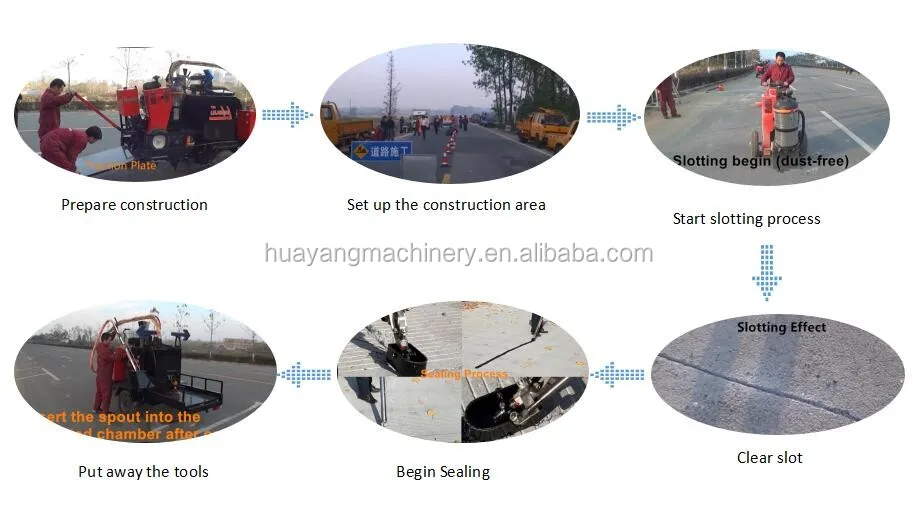

Construction Procedure:

1.Prep the Crack with either a router or random crack saw. This opens up the crack, creates a reservoir and preps the edge for better bonding. Rout or Saw? The most common approach is Saw Concrete, Rout Asphalt.

2.Clean the crack with dry, clean compressed air or for the best results, use a Heat lance. A heat lance removes not only dirt but moisture and vegetation. The heat lance also heats the old surface which helps in bonding with the new sealant. THE CLEANING PROCESS IS THE MOST IMPORTANT PART OF THE PROCESS.

3. Seal the crack with a quality Polymer modified brand name rubberized hot-pour sealant. Hot-pour sealant is proven to last up to 10 times longer the cold applied products in flexible pavements.

Product advantages:

It is the latest in a long line of melter/applicators from our company. Features are listed below:

1. Digital Flow Control- Provides smooth, even material flow no matter what volume is required. With pump speeds less than 25RPM’s and virtually no back pressure, packing leakage is minimized and pump life is extended.

2. Agitator - Ensures even mixing and eliminates temperature stratification in the tank. Unobstructed Internal Machine Recirculation ensures superfast heat up and recovery times.

3. Auto/Manual Operation- Choose the operation that works best for your application; manual operation allows the user to operate the pump and agitator. When in “Auto” mode, the digital control system takes over.

4. Equipped with the new “No-Drip” ergonomic wand. The robust aluminium design makes crack sealing an easier process. A special ball valve is located at the tip to virtually eliminate dripping between cracks.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

Packaging Details
The normal package is carton and steel, to protect the machines from damaging and getting humidified during long-term shipment; Or we could also pack it according to customers special request.
