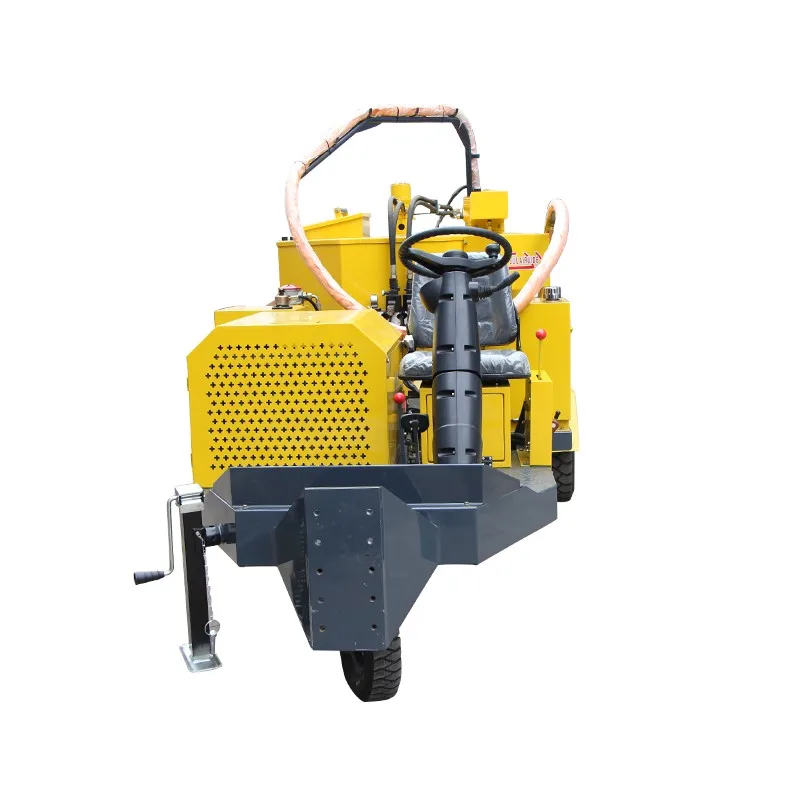

pavement crack repair melter bitumen patching kettle winter road surface crack repair

  • 1 - 2 Sets
  • >=3 Sets
Model Number:
Lead Time:
Quantity(Sets) 1 - 1 2 - 5 6 - 10 >10
Est. Time(days) 7 12 20 Negotiable
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)


Graphic customization (Min. Order: 1 Sets)
size, color, weight, shape, components, etc. (Min. Order: 1 Sets) Less
Report Suspicious Activity
Quick Details
2200kg, 2200KG
1 Year
Place of Origin:
Anhui, China
Brand Name:
Melting Speed:
About 40 mins
Yanmar 3TNV three cylinder diesel engine
Hot melt kettle volume:
Heat transfer oil / conduction oil:
Engine Power:
Fuel Tank Capability:
Hydraulic fuel tank capacity:
Imported Italian Riello diesel burner
Burning Power:
100000 KCAL
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
300 Set/Sets per Month
Packaging & Delivery
Packaging Details
plywood and pallet, to protect the machines from damaging and being affected with damp
Shanghai, Ningbo, or other ports required by customers
Lead Time :
Quantity(Sets) 1 - 1 2 - 5 6 - 10 >10
Est. Time(days) 7 12 20 To be negotiated
Product Description

pavement crack repair melter bitumen
patching kettle winter road surface crack repair

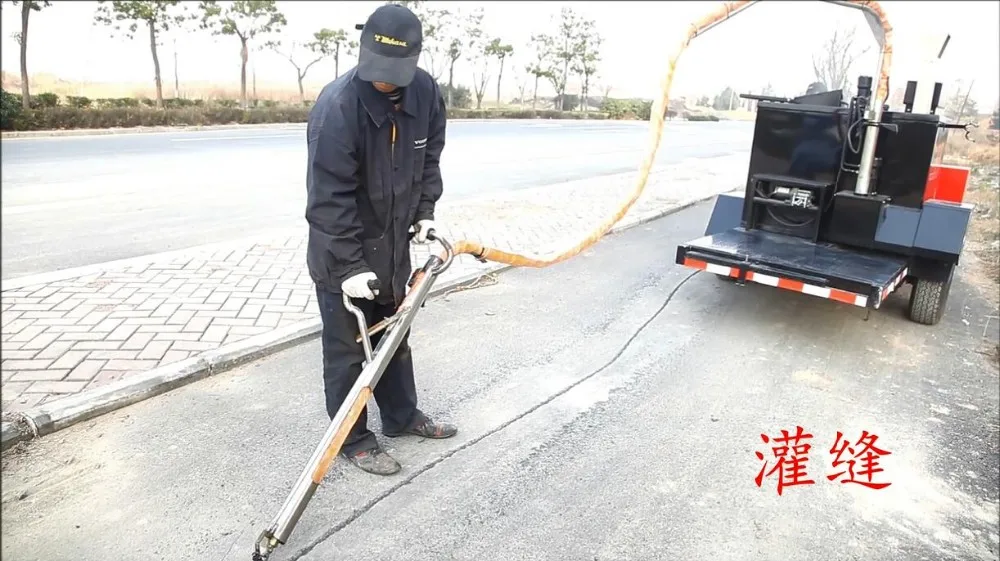

Why should we use Blacktop and Asphalt Hot Pour Crackfiller?

The hot pour crackfiller in your parking lot or even in your asphalt driveway is proven to be useful in extending the life of the surface. In connection with this, one of the commonly used products in carrying out the process of blacktop and asphalt crackfiller is known as the rubberized type of asphalt crack filler. This is available in its hot melted form. And thus, it is referred to as hot pour crackfiller.

The simple cracks in the surface should be repaired as soon as possible. Simple cracks can occur because of the movement of the ground and are due to the aging process of the asphalt. Usually, these cracks are often in straight or in zigzag form across the driveway or a parking lot surface. In this type of crack, we will fill the asphalt hot pour crackfiller to repair the cracks immediately.

Benefits of Routine Maintenance for Hot Pour Crackfiller:

There are two important reasons of performing the routine maintenance for the blacktop and asphalt crackfiller. One of these reasons is to further prevent moisture from penetrating underneath the asphalt surface of your parking lot or driveway.

1) Moisture penetration may lead to further damage of your asphalt. This gives you an idea on why is there a need for you to use asealcoat in the surface. This is as part of the preventative maintenance and the additional protection from harsh elements.

2) The filling cracks on your asphalt surface will help prevent vegetation growth. As roots of the vegetation get bigger, the roots of the plants push the pavement up. These will also help prevent pavement breakages and other issues.

This is the reason why when you've observed some of the cracks on your driveway or at your parking lot surface, you need to allow the area to undergo the process of blacktop and asphalt crackfiller. This is the best way to maintain the functionality of the place. This also helps extend its life for years!

Detailed Images

Machine Parts

Imported Yanmar 3TNV three cylinder diesel engine, providing plenty of power system to the equipment

Main Features

The heating system of imported Riello diesel burner can not only provide the ideal heating effect, it's also stable and sustainable. through the use of advanced microcomputer control technology, the switch on and switch off function of the burner can be achieved automatically through setting heating temperature on the control panel. Through this, you could not only save energy consumption, but could also realize the real intelligence operations

Machine Parts

Hot melt pot adopts the design of inter-layered heat conduction oil. It can use special-purposed heating sealing glue, it can also use modified asphalt after heating.There are a number of adhesive absorbing openings at the bottom of the hot melt kettle, and the output pump could absorb the melting glue from any position of the hot melt kettle, thus greatly speeding up the melting and discharging of material.

Main Features

The discharge hose adopts electric heating during the whole heating process, in addition to the automatic discharging switch, it's specially equipped with a drip-proof valve, thus completely eradicating waste and pollution of road surface material caused by material drip

Machine Parts

Emissions from combustion furnace uses spiral gas duct, reducing flue gas emissions. This is to avoid high-temperature flue gas from discharging into the air, to better control the heat loss rate and to increase the combustion value, thereby reducing work cycle time of the burner and prolong the thermal cycle

Main Features

The bracket of spear parts of Crack sealing gun adopt patented design of heat insulation box, which are interlinked with hot melt kettle. Even when stopping work , you also need not worry that spear sealant would cause coagulation block. The crack sealing gun uses Teflon technology in the heating pipe, guaranteeing no bond in the barrel after use, therefore, there is no additional cleaning procedures of the pipeline

Machine Parts

Digital display: Through microcomputer control, you can respectively control the temperature of hot melt kettle, conductive thermal oil and crack sealing gun, thus achieving accurate control of heating temperature for different seal material

Main Features

The whole machine adopts fully enclosed design, not only having beautiful shape, but also can better protect the engine and other key components

Machine Parts

Advanced design concept, adding a carrying platform in the end of the filling and sewing machine, and also a traction device. Grooving machine, heat gun or other items can be easy to carry, greatly enhancing the maneuverability of the equipment

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

Packaging Details
The normal package is plywood and pallet, to protect the machines from damaging and getting humidified during long-term shipment; Or we could also pack it according to customers special request.
