road crack filling sealing machine pavement preservation highway pavement regeneration electric motor road maintenance supplier

  • 1 - 2 Sets
  • >=3 Sets
Model Number:
Tank Volume:
Lead Time:
Quantity(Sets) 1 - 1 2 - 3 4 - 5 >5
Est. Time(days) 7 12 20 Negotiable
size, color, weight, shape, components, etc. (Min. Order: 1 Sets)
Customized logo (Min. Order: 1 Sets)


Customized packaging (Min. Order: 1 Sets)
Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Quick Details
2.0 kw
220KG, 220KG
After-sales Service Provided:
Free spare parts, Video technical support, Online support, Field installation, commissioning and training, Field maintenance and repair service
1 Year
Applicable Industries:
Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Home Use, Retail, Construction works
Place of Origin:
Anhui, China
Brand Name:
Moving Method:
hand-push type
Yamaha Generator
Output Power:
Rated Power:
2.0 KW
Rotation speed and frequency:
Electric heating hose:
Heat transfer oil:
Supply Ability
Supply Ability:
300 Set/Sets per Month
Packaging & Delivery
Packaging Details
plywood and pallet, to protect the machines from damaging and being affected with damp
Shanghai, Ningbo, or other ports required by customers
Lead Time :
Quantity(Sets) 1 - 1 2 - 3 4 - 5 >5
Est. Time(days) 7 12 20 To be negotiated
Product Description

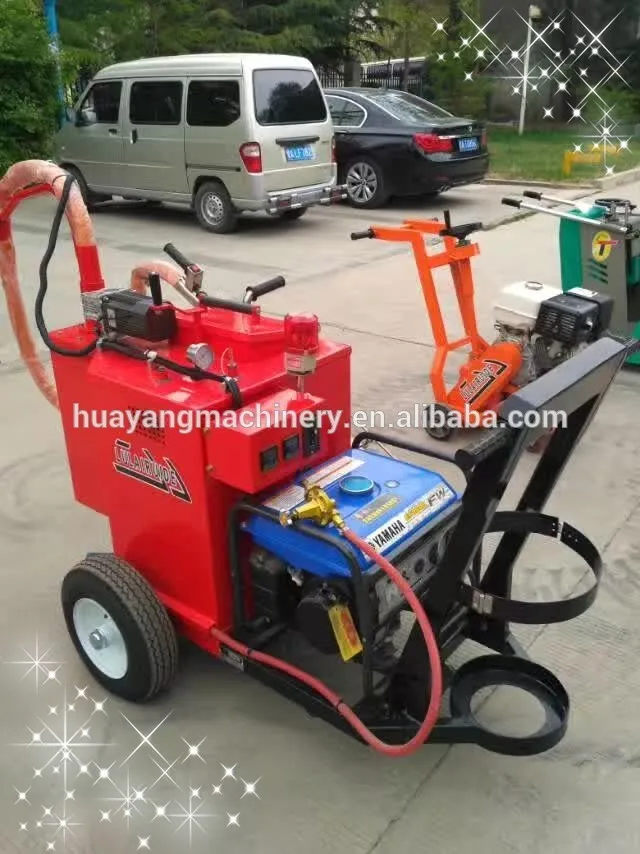

self-propelling road crack filling and repairing maintenance machine, temporary
repairing sealant filling, dedicated with honda engine crack injection machine

Product Application

Applied to seal / repair the crack appeared on highway, city roads and airport pavements after initial traffic opening or after big/medium repairment. After slotting through grooving machine, we fill the crack with sealants, to ensure that the overall performance of the roads, therefore prolong the service life of highway.


1.Moving Method: hand-push type
2.Weight: 220KG
3.Size: 1600*860*1200mm(L*W*H)

4.Generator: Yamaha Generator
5.Output Power: 50HZ
6.Rated Power: 2.0 KW

7.Voltage: 220V
8. Rotation speed and frequency: 4000rpm(50Hz)
9. Electric heating hose: 3M in length, electric heating during the whole procedure, more smoothly when sending out the glue

10.Heat transfer oil: 15L
11.Mixing Method: Manual operation

12.Hot melt kettle volume: 80L
13.Heating Method: heat transfer oil indirect heating

14.Asphalt pump: high pressure wear-resisting anti-clogging asphalt pump, pump adopts inorganic speed regulating motor, regulate the flow of sealant

15.Turning Method: universal rotating rear wheel, flexible steering, convenient in mobility; could seal irregular cracks
Detailed Images

Machine Parts

Name:  Generator

Brand: Yamaha

Original: Japan

The machine adopts imported Yamaha generator

Rated Power: 2.0 kw
Voltage: 220 v

Main Features

Hot melt kettle uses thermal oil heating which has uniform heating and sealant is not easy to carbide in the kettle

Temperature monitoring system

 LED digital display temperature control system, can monitor and adjust the temperature of the heat conduction oil and the temperature of the electric heating tube

External feeding pump:

greatly simplifies the equipment maintenance procedures and improves the service life of the machine

Electric heating tube:

3 m in length. Applying the electric heating tube could smooth the process of glue pushing. The electric heating tube uses plastic Teflon as inner core, the outside of inner core is winded by heating wire, to ensure the maximum stretch and the highest heat transfer. It has multi-layer insulation; Outer is asbestos and heat pipe is yellow

Electric Igniter

Machine Parts

Humanized sealing spout scraper, is more efficient in operation, reduce the labor intensity of workers, and is equipped with a drip discharge valve, completely eradicate the road pollution

Special mobile trailer:

Optional choice, making movement more easy and convenient.

Construction Procedure:

1.Prep the Crack with either a router or random crack saw. This opens up the crack, creates a reservoir and preps the edge for better bonding. Rout or Saw? The most common approach is Saw Concrete, Rout Asphalt.

2.Clean the crack with dry, clean compressed air or for the best results, use a Heat lance. A heat lance removes not only dirt but moisture and vegetation. The heat lance also heats the old surface which helps in bonding with the new sealant. THE CLEANING PROCESS IS THE MOST IMPORTANT PART OF THE PROCESS.

3. Seal the crack with a quality Polymer modified brand name rubberized hot-pour sealant. Hot-pour sealant is proven to last up to 10 times longer the cold applied products in flexible pavements.

Product Features:

1. Small volume and light weight makes it move easily. Configuration of the ramp stop device is easy to operate, therefore, irrigation of sealant is evenly and efficient

2. Small volume and light weight makes it move easily. Configuration of the ramp stop device is easy to operate, therefore, irrigation of sealant is evenly and efficient

3. The use of advanced control instrument, can clearly display and adjust the temperature of electric heating tube and heat conduction oil. The operator is clear about the operation of the machine at a glance

4. The electric heating hose adopts electric heating during the whole process, and needs no clean-up in using process

5. Pump is controlled through infinitely adjustable-speed motor, can regulate the flow of sealant according to need

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

Packaging Details
The normal package is carton and steel, to protect the machines from damaging and getting humidified during long-term shipment; Or we could also pack it according to customers special request.
