highway asphalt road pavement crack sealing and filling machine airport road failure maintenance driveway breakdown treatment

  • 1 - 2 Sets
    $18,825.00
  • >=3 Sets
    $17,825.00
Model Number:
LLRD-G350
Lead Time:
Quantity(Sets) 1 - 1 2 - 5 6 - 10 >10
Est. Time(days) 7 12 20 Negotiable
Customization:
Graphic customization (Min. Order: 1 Sets)
Customized logo (Min. Order: 1 Sets)

More

size, color, weight, shape, components, etc. (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Power(W):
25HP
Dimension(L*W*H):
3350*1700*1900mm(L*W*H)
Weight:
2200kg, 2200KG
Warranty:
1 Year
Condition:
New
Place of Origin:
Anhui, China (Mainland)
Brand Name:
LULAIRUIDE
Certification:
CE
Melting Speed:
About 40 mins
Engine:
Imported Honda GX690 gasoline engine
Hot melt kettle volume:
350L
Heat transfer oil / conduction oil:
120L
Engine Power:
25HP
Fuel Tank Capability:
50L
Hydraulic fuel tank capacity:
50L
Burner:
Imported Italian Riello diesel burner
Burning Power:
100000 KCAL
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
300 Set/Sets per Month
Packaging & Delivery
Packaging Details
plywood and pallet, to protect the machines from damaging and being affected with damp
Port
Shanghai, Ningbo, or other ports required by customers
Lead Time :
Quantity(Sets) 1 - 1 2 - 5 6 - 10 >10
Est. Time(days) 7 12 20 To be negotiated
Product Description

automatic Diamond Bladed road construction machine, Heavy duty Road Surface

crack sealing machine, city planning hydraulic system road maintenance supplier



Product Application

It is used for sealing joints in the cement roads. Thermostat control system heats hot melt materials and can prevent aging materials effectively. Pressure injection sealing provides complete results by filling the gap from the bottom.



Main Features

1. Thermostat control system can set up and control heating temperature automatically without easy aging, so that the material maintains a constant temperature.

2. Material pump and pipe are equipped with heating device, avoiding material condensation at low-temperature environment effectively.

3. Pressure injection sealing provides waterproof effect by filling the gap from bottom through material pump.

4. When seeling speed and walking speed are adjusted in line, the equipment will be able to move by itself with hand push and achieve the effect of intelligent construction.

Note: Equipment configuration can be adjusted according to customers construction needs.
Certifications
Detailed Images

Machine Parts


The imported Honda EG6500 gasoline generators: provide sufficient power system to the equipment







Main Features

The heating system of imported Riello diesel burner can not only provide the ideal heating effect, it's also stable and sustainable. through the use of advanced microcomputer control technology, the switch on and switch off function of the burner can be achieved automatically through setting heating temperature on the control panel. Through this, you could not only save energy consumption, but could also realize the real intelligence operations


Machine Parts

Hot melt pot adopts the design of inter-layered heat conduction oil. It can use special-purposed heating sealing glue, it can also use modified asphalt after heating.There are a number of adhesive absorbing openings at the bottom of the hot melt kettle, and the output pump could absorb the melting glue from any position of the hot melt kettle, thus greatly speeding up the melting and discharging of material.


Main Features

The discharge hose adopts electric heating during the whole heating process, in addition to the automatic discharging switch, it's specially equipped with a drip-proof valve, thus completely eradicating waste and pollution of road surface material caused by material drip




Machine Parts

Emissions from combustion furnace uses spiral gas duct, reducing flue gas emissions. This is to avoid high-temperature flue gas from discharging into the air, to better control the heat loss rate and to increase the combustion value, thereby reducing work cycle time of the burner and prolong the thermal cycle



Main Features

The bracket of spear parts of Crack sealing gun adopt patented design of heat insulation box, which are interlinked with hot melt kettle. Even when stopping work , you also need not worry that spear sealant would cause coagulation block. The crack sealing gun uses Teflon technology in the heating pipe, guaranteeing no bond in the barrel after use, therefore, there is no additional cleaning procedures of the pipeline


Machine Parts

Digital display: Through microcomputer control, you can respectively control the temperature of hot melt kettle, conductive thermal oil and crack sealing gun, thus achieving accurate control of heating temperature for different seal material





Main Features

The whole machine adopts fully enclosed design, not only having beautiful shape, but also can better protect the engine and other key components






Machine Parts

Advanced design concept, adding a carrying platform in the end of the filling and sewing machine, and also a traction device. Grooving machine, heat gun or other items can be easy to carry, greatly enhancing the maneuverability of the equipment







Main Features:

1. Thermostat control system can set up and control heating temperature automatically without easy aging, so that the material maintains a constant temperature.

2. Material pump and pipe are equipped with heating device, avoiding material condensation at low-temperature environment effectively.

3. Pressure injection sealing provides waterproof effect by filling the gap from bottom through material pump.

4. When seeling speed and walking speed are adjusted in line, the equipment will be able to move by itself with hand push and achieve the effect of intelligent construction.

Note: Equipment configuration can be adjusted according to customers construction needs.

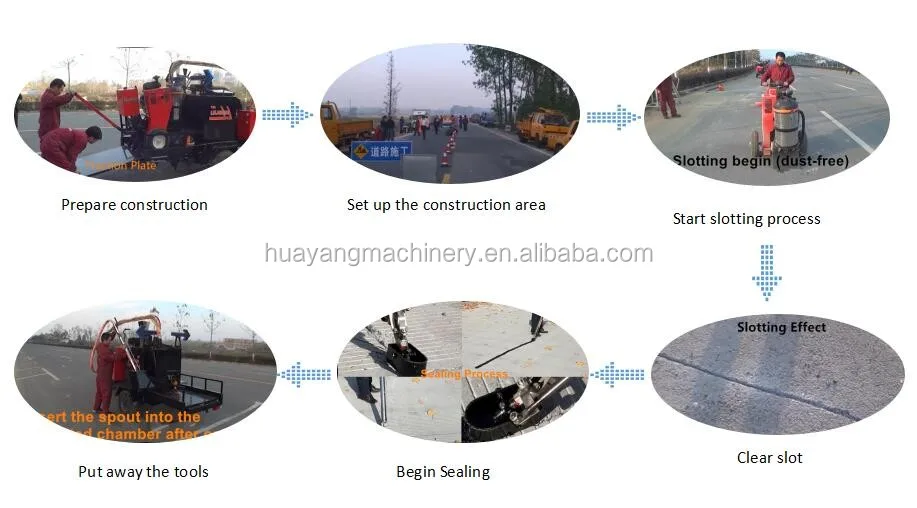

Procedures for crack filling:


1. Preparing for Crack Filling Asphalt

This is the most time-consuming and most important part of the job. To get the longest-lasting repair, the crack seal needs a clean and solid area to stick to. Any debris or weeds that are left in the crack will degrade your crack repair job.

A pro would use specialized crack filling equipment like a heat lance


2. Remove Any Debris


Use a chisel or screwdriver to scrape out any loose rocks, debris, or leftover vegetation from the cracks. Then use a wire brush or hard-bristled broom to sweep out any dust; you can also use a gas blower to speed things up.

3. Determine the Size of Your Cracks

While you're cleaning the cracks, make a note of how wide and deep the fissures are. Basically, you want to divide the pavement cracks into two groups: shallow cracks and larger ruptures. This is important because they are repaired in different ways. Don't stop looking at the obvious; keep an eye out for surface spidering damage on the pavement. That's a sign of a dry brittle surface, telling you it's time to apply a seal coat.

4. Begin Your Crack Repairs

You can use a caulking gun as your crack filling equipment (or simply pour a little bit at a time on your crack) and a U shaped squeegee. Simply apply and fill the entire crack, then squeegee and allow the crack seal to dry.
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
3550*1900*2100mm(L*W*H)
Weight
2220KG



Packaging Details
The normal package is wood and pallet, to protect the machines from damaging and getting humidified during long-term shipment; Or we could also pack it according to customers special request.
