Free spare parts, Video technical support, Online support, Field installation, commissioning and training, Field maintenance and repair service
Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Home Use, Retail, Construction works
Place of Origin:
About 40 mins
Imported Honda GX690 gasoline engine
Hot melt kettle volume:
Heat transfer oil / conduction oil:
Fuel Tank Capability:
Hydraulic fuel tank capacity:
Imported Italian Riello diesel burner
300 Set/Sets per Month
Packaging & Delivery
Plywood and steel, to protect the machines from damaging and being affected with damp
Shanghai, Ningbo, or other ports required by customers

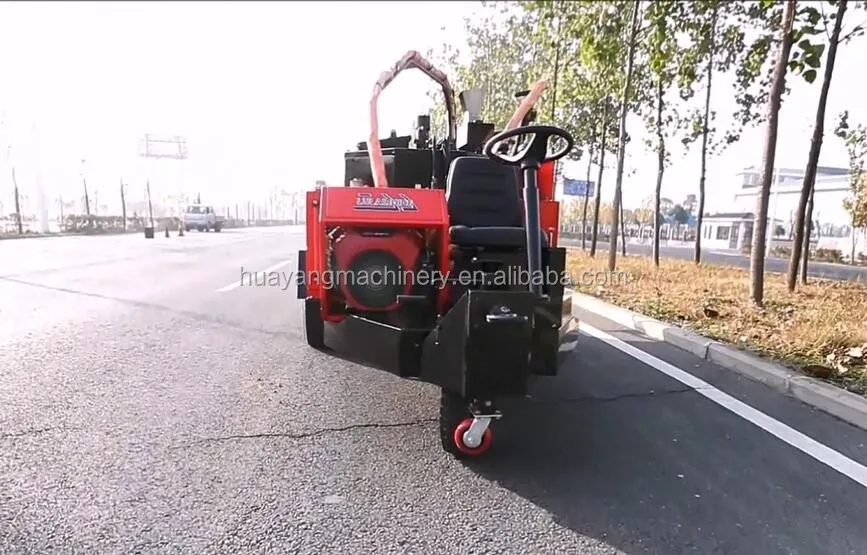

Road crack filling and sealing machine
Hefei Huayang Construction Machinery Co.,Ltd has over 15 years' experience in this industry and have served many municipal engineering projects. Our long list of projects and experiences include:
City and Township Roads
Airport Runways and Taxiways
Tennis Courts and Running Tracks
*Equipped with an accumulator which compose great demolish power
*The additional handle makes transportation easier and also to place the tool with precision
*No restriction for operating in a lower temperature
*Hydraulic lubricated at all times, free maintenance
*Tools can be common use with pneumatic breakers
*Lightweight and compact, Accordance with LULAIRUIDE hydraulic power units makes the work done more efficiently
*Low noise and low vibration

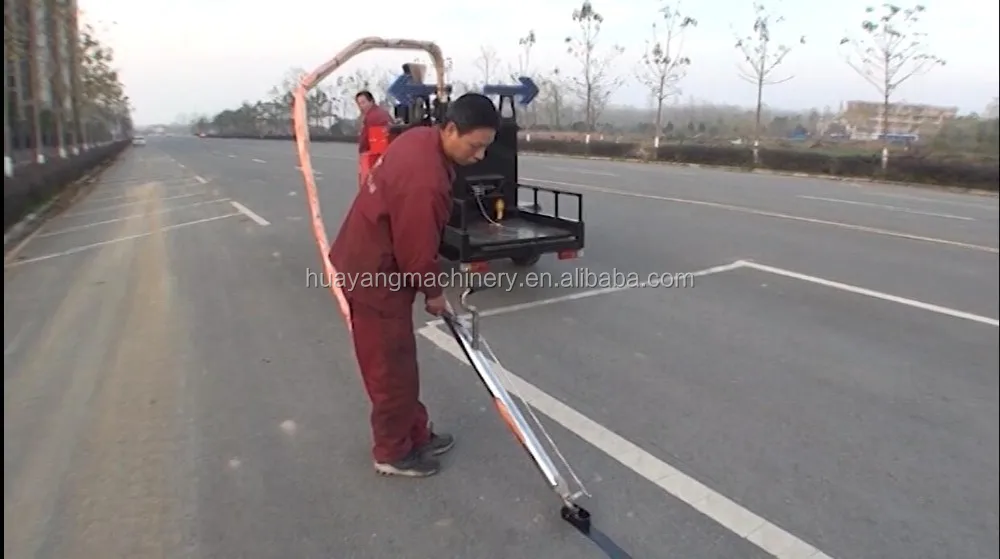

Crack sealing procedure:
The imported Honda EG6500 gasoline generators: provide sufficient power system to the equipment
The heating system of imported Riello diesel burner can not only provide the ideal heating effect, it's also stable and sustainable. through the use of advanced microcomputer control technology, the switch on and switch off function of the burner can be achieved automatically through setting heating temperature on the control panel. Through this, you could not only save energy consumption, but could also realize the real intelligence operations
Hot melt pot adopts the design of inter-layered heat conduction oil. It can use special-purposed heating sealing glue, it can also use modified asphalt after heating.There are a number of adhesive absorbing openings at the bottom of the hot melt kettle, and the output pump could absorb the melting glue from any position of the hot melt kettle, thus greatly speeding up the melting and discharging of material.
The discharge hose adopts electric heating during the whole heating process, in addition to the automatic discharging switch, it's specially equipped with a drip-proof valve, thus completely eradicating waste and pollution of road surface material caused by material drip
Emissions from combustion furnace uses spiral gas duct, reducing flue gas emissions. This is to avoid high-temperature flue gas from discharging into the air, to better control the heat loss rate and to increase the combustion value, thereby reducing work cycle time of the burner and prolong the thermal cycle
The bracket of spear parts of Crack sealing gun adopt patented design of heat insulation box, which are interlinked with hot melt kettle. Even when stopping work , you also need not worry that spear sealant would cause coagulation block. The crack sealing gun uses Teflon technology in the heating pipe, guaranteeing no bond in the barrel after use, therefore, there is no additional cleaning procedures of the pipeline
Digital display: Through microcomputer control, you can respectively control the temperature of hot melt kettle, conductive thermal oil and crack sealing gun, thus achieving accurate control of heating temperature for different seal material
The whole machine adopts fully enclosed design, not only having beautiful shape, but also can better protect the engine and other key components
Advanced design concept, adding a carrying platform in the end of the filling and sewing machine, and also a traction device. Grooving machine, heat gun or other items can be easy to carry, greatly enhancing the maneuverability of the equipment
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
The normal package is plywood and steel, to protect the machines from damaging and getting humidified during long-term shipment; Or we could also pack it according to customers special request.
